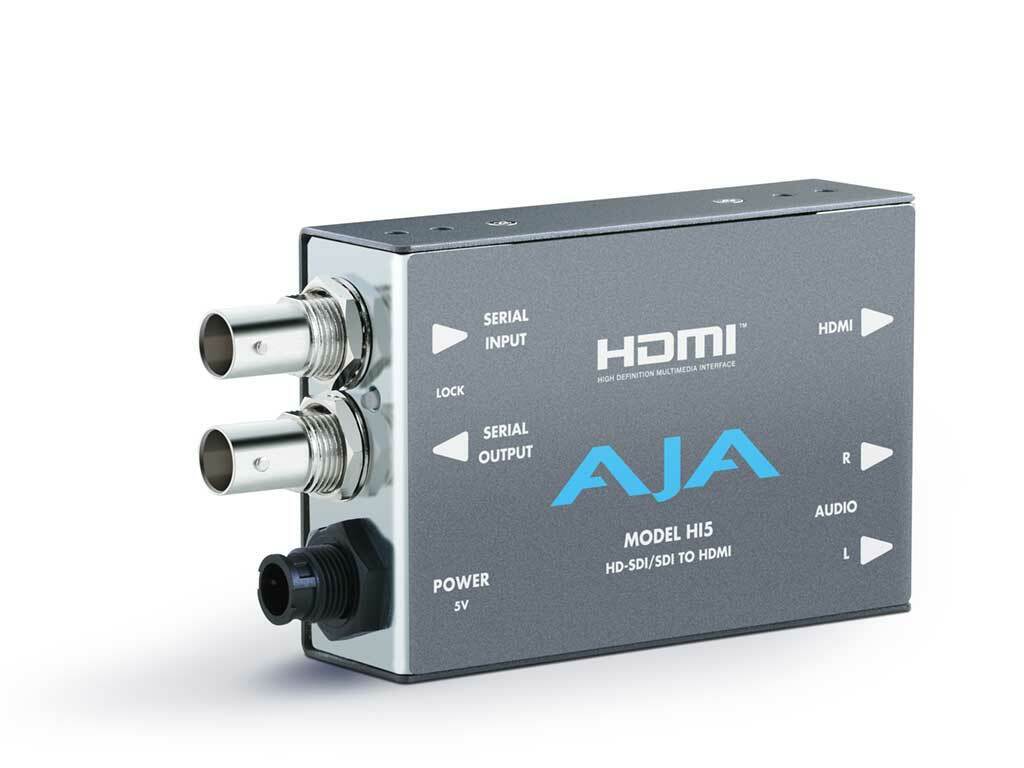

AJA Hi5 Video and Audio Converter HD-SDI/SDI to HDMI

438,66

Lieferzeit: 10 Werktage

AJA Hi5 Video and Audio Converter HD-SDI/SDI to HDMI

The Hi5 converts SDI or HD-SDI to HDMI for driving HDMI monitors. Embedded SD/HD-SDI audio is supported in the HDMI output allowing a convenient single cable audio/video connection. The Hi5 provides 2-Channel RCA style audio outputs for separate audio monitoring if needed. The Hi5 also provides a looping SD/HD-SDI output useful for connecting additional equipment, or for “daisy chaining” multiple monitors to the same SD-HD-SDI source.

Features
• SD/HD-SDI to HDMI
• Full HDMI support including 10-bit video and 8 channels of embedded audio
• Additional 2-Channel RCA jack audio output
• Equalized looping SD/HD-SDI output
• HDMI cable included

Technische Spezifikationen

Input
  • SMPTE-259/274/292/296 SD/HD-SDI, 1 x BNC
Input Formats
  • 525i, 625i,
  • 720p 50/59.94/60,
  • 1080i 50/59.94/60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, and 1080p30
Outputs
  • HDMI with embedded audio, 24-bit (selectable by internal jumper: 2 or 8 channels)
  • Audio, 2-channel RCA-style outputs at -10dBV (nominal), Channel 1 and 2
  • 1 Looping SD/HD-SDI output of the SDI input (75 ohm, unterminated)
HDMI
  • Standard Type A connector
  • Video: 8-bit RGB 4:4:4 or 10-bit YCbCr 4:2:2 (selectable by internal jumper)
  • Audio: 24-bit, with 2 or 8 embedded channels (selectable by internal jumper)
HDCP
  • The Hi5 does not encode the HDMI output with HDCP encryption. By definition, SD/HD-SDI inputs to the Hi5 are unencrypted. The HDMI specification requires HDMI monitors to support unencrypted inputs.
Power
  • +5VDC Regulated, 3 Watts, Power Supply Required (included with purchase)
Size
  • 4.6″ x 2.4″ x 1″ (117 x 61 x 25mm)


Die Ware ist
original verpackt und wird mit Rechnung und ausgewiesener
Mehrwertsteuer versendet. Diese Hardware ist Umtausch- und
Rückgaberecht ausgeschlossen.

Zusätzliche Information

Marke

Produktart

Herstellernummer

ConditionNew
×
