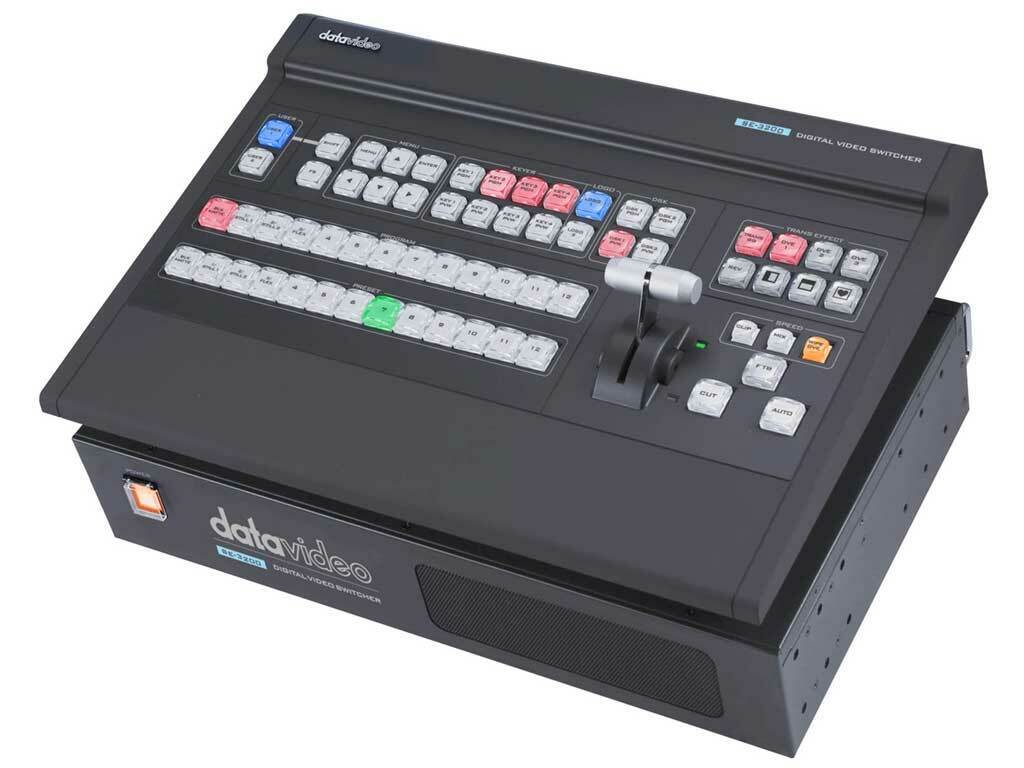

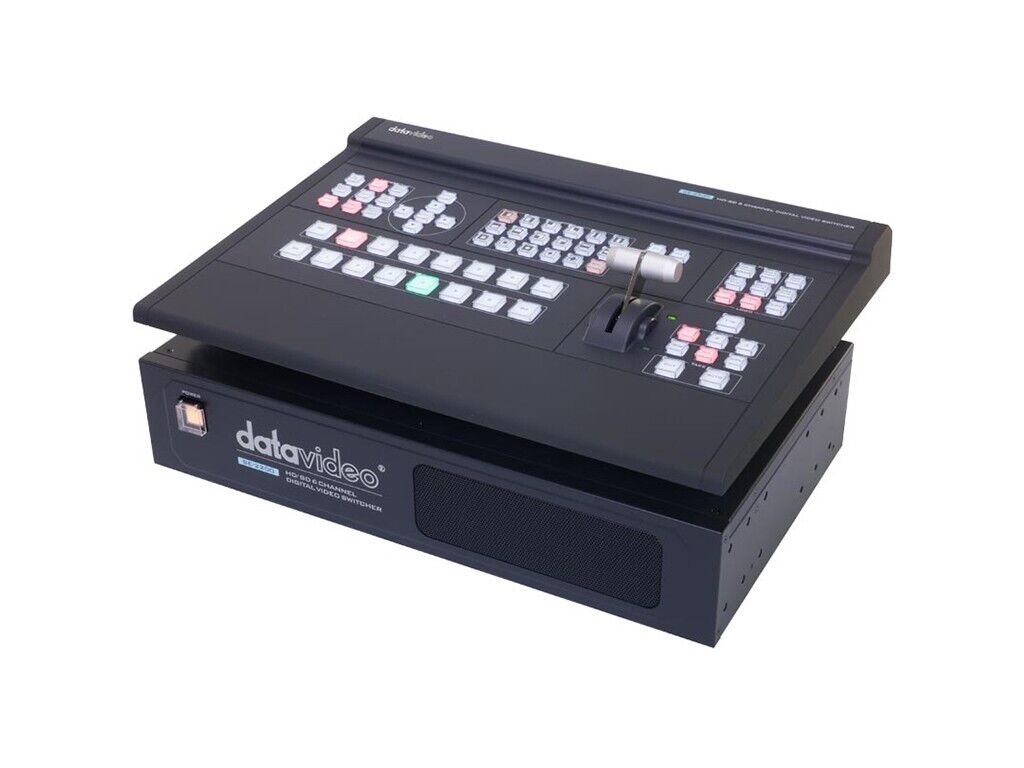

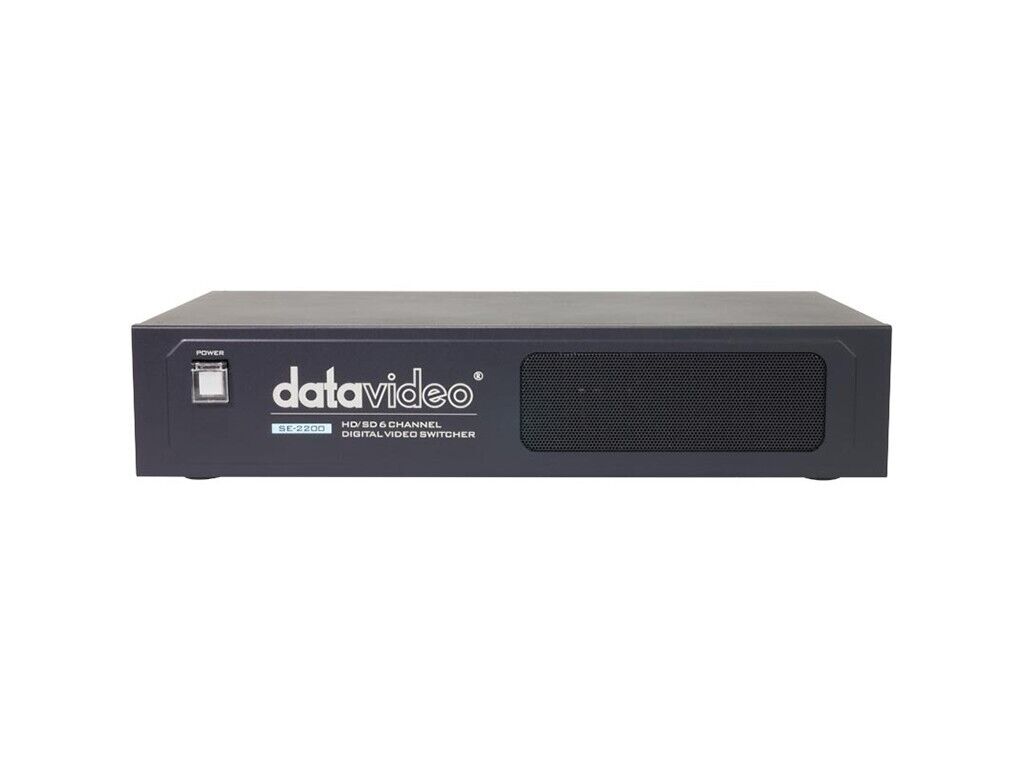

DataVideo SE-2200 mit Gebrauchspuren, voll funktionsfähig.
6 Input HD broadcast quality switcher
SE-2200
Video Standard HD & SD
Video Format
1080i 50/59.94/60Hz
720p 50/59.94/60Hz
576i 50Hz
480i 59.94Hz
Video Processing SDI: 4:2:2
HDMI: YUV 4:2:2 10 bit, RGB 4:4:4
Input Routable / Crosspoint All 6, repeatable
Video Input 6x HD-SDI, 2x HDMI (on CH5 & 6)
Mix HD & SD Source —-
Computer Graphic Interface 2 via HDMI
Video Output
6x SDI Outputs assignable:
AUX 1-4, PGM, PVW, PGM Clean &
multi-view
2x HDMI assignable:
PGM or multi-view
Down-converted Output —-
Built-in Multi-view
Monitoring Out 2x HDMI
Analogue Audio Input 4x Balanced XLR
Analogue Audio Output 2x Balanced XLR
Digital Embedded Audio
Support Input up to 16 channels, Output 4 channels
Audio Delay Calibration —-
A+V Switching Yes
Chromakey —-
Title Creator Yes, CG-200 software free download
USK —-
DSK 2x DSK support Lumakey/ Linear key (Key / Fill)
Picture in Picture 2
Logo Insertion 2 (or 1 logo + 1 clock)
Still Store 6
Effects FTB, Cut, 8 Wipe with border
Transition Preview PiP & DSK
Sync / Reference In/Out Built-in Genlock (internal)
Tally Output 1x D-sub 25pin, dual color
PC Remote Control Ethernet (free Window software)
RS-422/ RS-232
Built-in Audio Mixer —-
Special Features 6x 6 Matrix seamless switch
Built inTC-200 CG interface
Chassis 2 units, 2RU rack-mount mainframe
Dimension (LxWxH) 433 x 312 x 76 mm (switcher)
432 x 252 x 88 mm (main unit)
Weight 6.1 kg
Power DC 12V, 32W
Operating Temp. Range 0~40 °C
What’s in the Box
1 x SE-2200 Main Unit
1 x SE-2200 Key Board
1 x AD Switch DC 12V with AC Cord
1 x DB9P TO DB9P Cable
1 x CB-41 / XLR to XLR Cable
12 x Screw
2 x 2U Ear Rack
Außerdem noch zu verkaufen: Datavideo HDR70 und 2×7″ LCD Display
