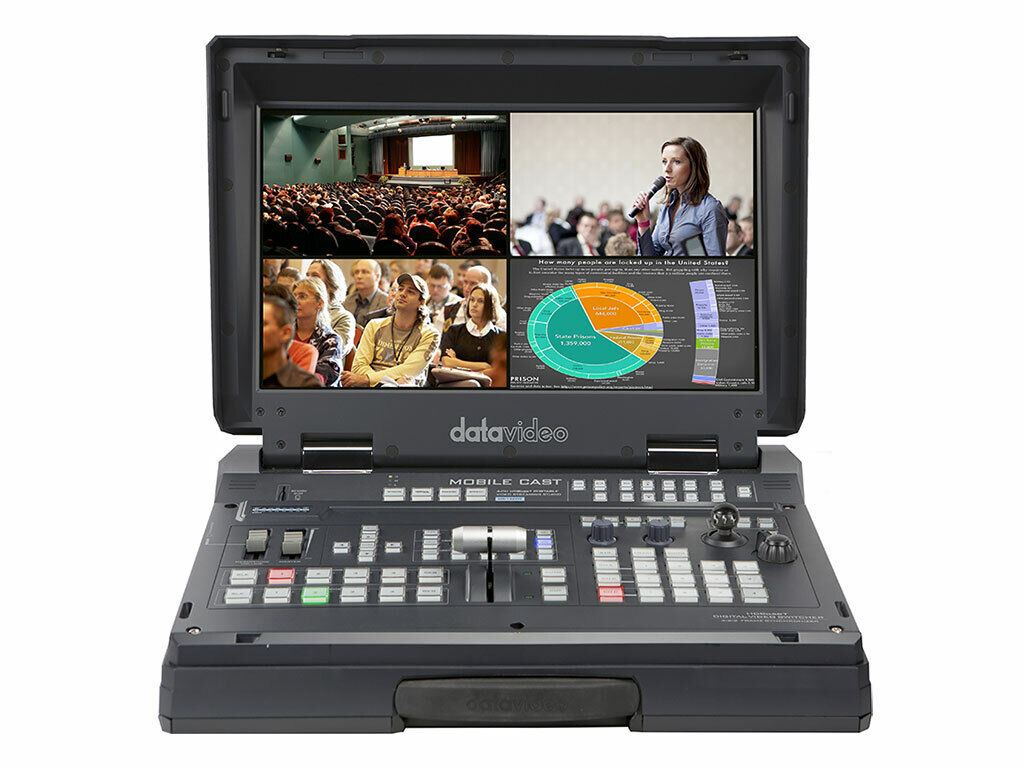

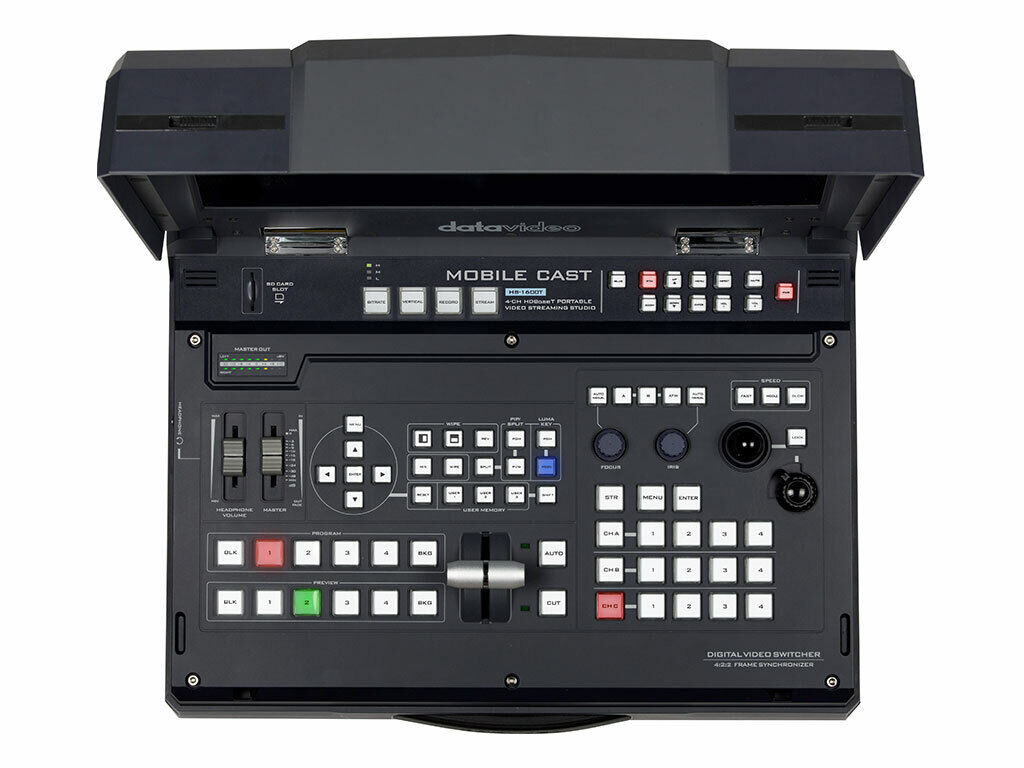

DataVideo HS-1600T MK2

5.899,99

Lieferzeit: 10 Werktage

DataVideo HS-1600T MK2


HDBaseT-Produktionseinheit mit Streaming

Tragbare Produktionseinheit, die als Kofferausstattung konzipiert ist; Video-Umschalter mit Mix-, Cut-, Wipe-Effekten, 3x HDBaseT-, 1x HDMI-Eingängen, integriertem Quad-Split- und Kamera-Controller, der PoE auf der HDBaseT-Leitung bietet, mit integriertem Streaming-Encoder / -Recorder

(Dieser Text wurde automatisch übersetzt)



The HS-1600T Mark II
supports dual stream to Facebook Live and YouTube simultaneously.



HS-1600T MKII 4-Channel HD/SD HDBaseT Portable Video Streaming Studio
Video Standard

HD & SD

Video Format

1080p 50/59.94/60Hz

1080i 50/59.94/60Hz

720p 50/59.94/60Hz

576i/p 50Hz

480i/p 59.94Hz

Input Routable / Crosspoint

N/A

Video Inputs

3 x HDBaseT

1 x HDMI

Computer Graphic Interface

1 via HDMI

Down-converted Output

Yes

Video Outputs

2 x HDMI PGM

1 x HDBaseT (RJ-45)

1 x Stream Port (RJ-45)

Audio Inputs

2 x Balanced XLR
1 x Stereo RCA (L/R) De-embedded Digital Audio

Audio Output

1x Stereo headphone

Digital Embedded Audio Support

Input 2 channels

Output 2 channels

Audio Delay Calibration

N/A

A+V Switching

N/A

USK

1x USK Lumakey support

DSK

N/A

Picture in Picture

1

Logo Insertion

N/A

Built-in Audio Mixer

4 channels

Built-in Monitor Display

17.3” HD TFT LED Backlit

1920×1080 pixels

Built-in Intercom & Tally

N/A

Streaming Video Encode

H.264 / AVC, Main/ High Profile Configurable Bit-rate up to

10Mbps

Streaming Audio Encode

AAC-LC
Configurable bit rate ranging from 32Kbps to 384Kbps Sample rate: 48KHz, 16bit

Streaming Protocol

TS over TCP/UDP (unicast & multicast)
RTSP over HTTP/TCP/UDP
RTMP/RTMPS (Publish)

Streaming Control

Web UI for system configuration and control

Recording File System

FAT, exFAT, NTFS

Recording File Format

MP4

Recording Setting Control

Web UI for system configuration and control

Dimension (LxWxH)

455 x 355 x 134 mm

Weight

17.2 Lbs (7.8 kg), Reinforce Plastic Case

Power

DC 48V, 4.16A

Operating Temp. Range

0~40 °C

Optional Accessories

CB-60/61/62

What’s in the Box
Content

1 x HS-1600T Mark II Product
1 x AD Switch DC 56V with AC Cord
1 x Thank You Card
3 x Ethernet Cables (55in. / 140cm)

Special Notes
Cable Requirement

Requires Solid Core, Cat -6 Shielded cable for Ethernet connection



Die Ware ist
original verpackt und wird mit Rechnung und ausgewiesener
Mehrwertsteuer versendet. Diese Hardware ist Umtausch- und
Rückgaberecht ausgeschlossen. Dieses Angebot richtet sich ausschließlich an gewerbliche Käufer.

Zusätzliche Information

Marke

DataVideo

Herstellernummer

2200-2019

Produktart

Video Streaming Studio

ConditionNew
×
