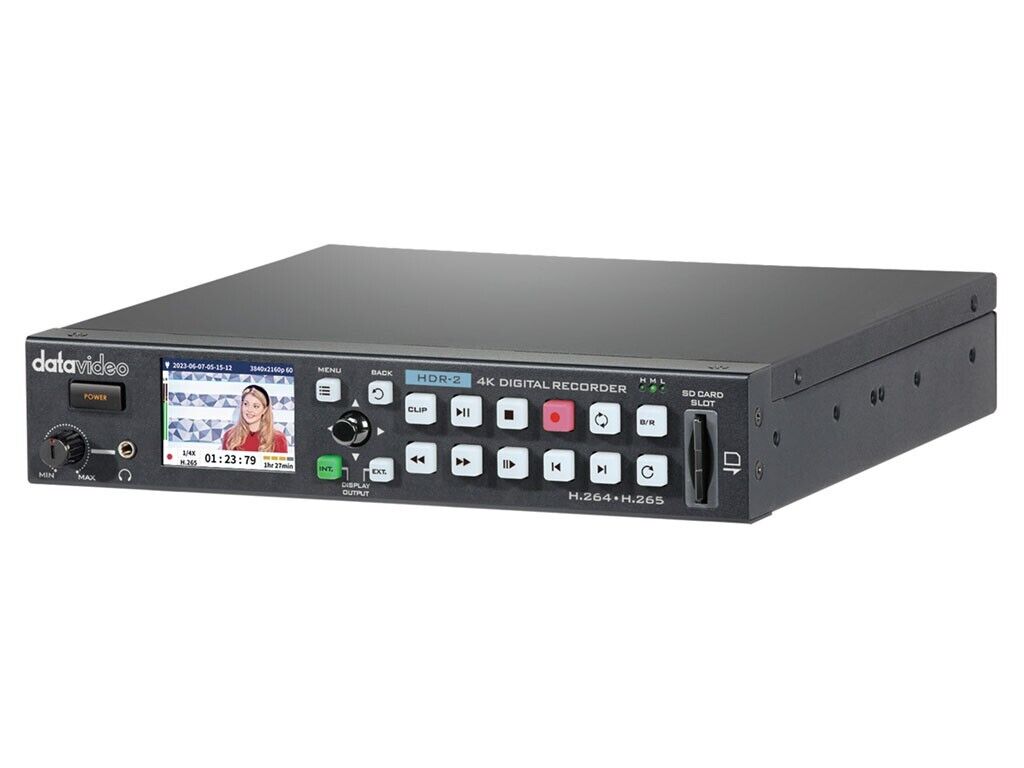

DataVideo HDR-2
4K-H.265-Recorder Unterstützt bis zu UHD 4K (3840 x 2160), HDMI 2.0-Eingang, -Ausgang und Loop-Thru-Ausgang, 2-Zoll-LCD für Einstellung und Überwachung, Aufnahme auf SD-Karte, symmetrischer XLR-Eingang x 2 + RCA-Eingang x 2, unterstützt DVIP und RS-232-Steuerung, GPI-Eingang
Video Format:
3840x2160p: 60/59.94/50 (H.265 Only)
3840x2160p: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
720p: 60/59.94/50
Supported Video Input Signal
1 x HDMI 2.0 Type A
Video Output
2 x HDMI 2.0 Type A
1 x HDMI 2.0 Type A Loop out
Analog Audio Input
2 x 3 Pin XLR Socket
1 x Stereo RCA set (L/R)
Analog Audio Output
3.5mm earphone jack
Embedded Audio
De-embedded Digital Audio (2 CH) Input
Embedded Digital Audio (2 CH) Output
Storage Medium
SD Card Slot x 1
Supports SD, SDHC and SDXC card (UHS-I) (U3 above)
Max.: 128GB
Multi-channel Recording
1-CH HDMI 4K & HD
Estimated Record Time (min per 10GB)
HD 32GB: 56Hr (1Mbps)~ 7Hr (8Mbps)
FHD 32GB: 28Hr (2Mbps)~ 3.5Hr (16Mbps)
UHD 32GB: 7Hr (8Mbps)~ 1.7Hr (32Mbps)
Recording Media
1 x SD Card
Storage File System
exFAT
Recorded File Format
MP4(H.265+ AAC) or (H.264+ AAC)
Video Recording Bit Rate / Color Sampling
YUV 4:2:0 / 8bit
bitrate:1Mbps~50Mbps
Audio Recording Format
AAC 2CH,
16bit 48KHz 192Kbps
Encode Supported
H.264: MAX RES: 4K@30 420 8bit codec
H.265: MAX RES: 4K@60 420 8bit codec
Video Bitrate
H.265: 50Mbps / H.264: 50Mbps
Preview Display
2” LCD (MENU)
Time Code In / Out
—-
External Sync / Genlock
—-
External Control
DVIP, RS-422/ RS-232
GPI Input: 3.5Ø phone jack (Pulse trigger: Record
Start/Stop)
Front Key Buttons
Power Failure Protection
Redundant USB power supply (not included)
Chassis
1RU, Half-rack Width
Dimension (LxWxH)
220 x 237 x 47 mm
Weight
1.4 kg
Operating Temp. Range
0~40 °C
Power
DC 12V, 2A
What’s in the Box:
1 x HDR-2 product
1 x AD Switch DC 12V
