DataVideo HD 12-Channel HD Portable Video Streaming Studio HS-3200


Lieferzeit: 10 Werktage

DataVideo HS-3200

HD 12-Channel HD Portable Video Streaming Studio

HS-3200 is a 12 channel professional mobile hand carry switcher with real Full 1080p/60 (3G) High Definition support, it features easy-to-use video streaming and recording appliance for professional video producers who need to simultaneously stream a live event and record the master quality version for post-event editing.

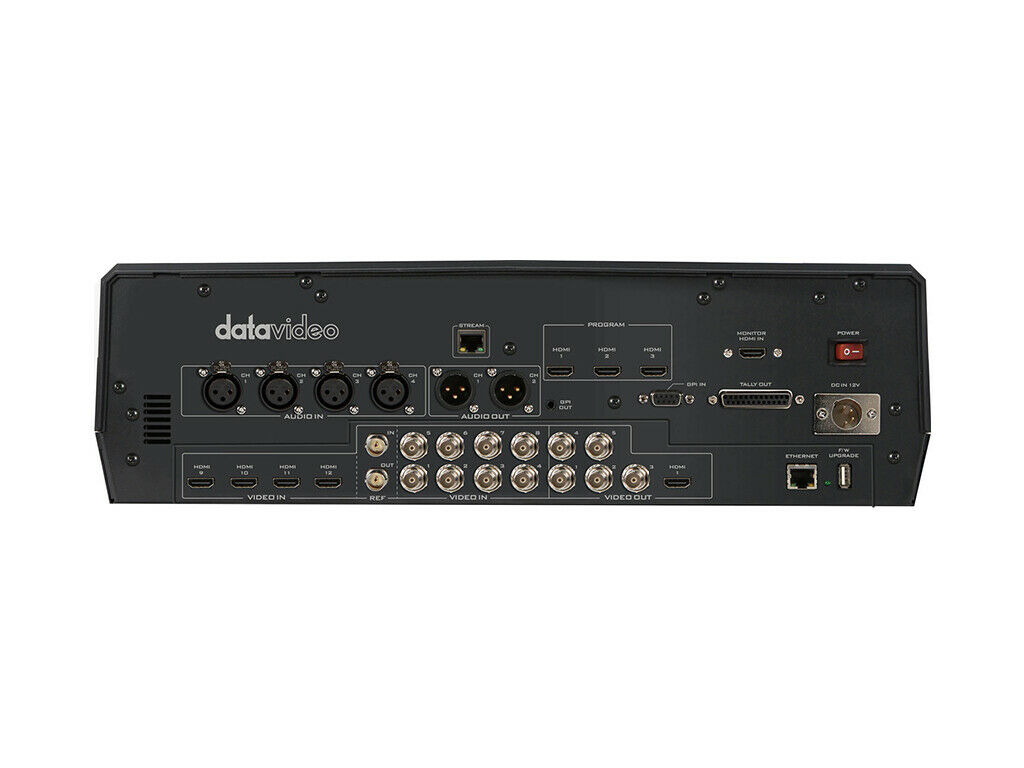

With 12 digital inputs including 8 SDI and 4 HDMI inputs with embedded audio, 5 SDI and 4 HDMI outputs for connecting HD recorder, monitor, etc.

HS-3200 is a lightweight, portable and powerful featured mobile studio solution which is designed for live events and TV programs that need to mix a variety of video and audio sources. HS-3200 is also a great value solution for the worship, education and AV market.

The HS-3200 also has powerful, easy to use effects, including Chroma / Luma Key, DSK, PIP, DVE, Wipe Generator, Still stores, logo insertion.

Advanced features include a 17.3-inch Full HD 1080p video monitor, which displays the multi-view, the Multi-view includes all the input sources, as well as preview and program.

• Full native 1080p (3G) operation
• Simultaneous Live Streaming & Recording
• Broadcast quality HD / SD H.264 network streaming
• Support different bitrate for recording and streaming
• 12 Total Video input interfaces (8 x SDI, 4 x HDMI)
• 9 Video Outputs: 5xSDI+4xHDMI
• 4 Upstream Keyers, supporting Chroma key & Linear / Luma key
• 8 PIP (4 flex source included)
• 2 DSK, supporting Linear & Luma Key Modes
• 2 Logo insertion (Animation logo, X/Y size)
• Wipe, Mix, DVE, Cut and Stinger Transitions
• 32 Wipe patterns including Circle & Heart, and Borders & Softness Control
• Clip player (150 Frames) Stinger Transitions function
• Any Input (1-12) can be used as a Frame store (Stills Store)
• Support XPT (Cross Point Assignment)
• 4 x XLR Analogue Audio Inputs
• 2 x XLR De-Embedded Analogue Audio Outputs
• Tally output
• USB Port for FW upgrade
• One 17.3-inch with a resolution of 1920×1080 dots

In the Box
• 1x HS-3200
• 1x AD switch DC 12V with AC Cord
• 1x Thank You Card

Die Ware ist
original verpackt und wird mit Rechnung und ausgewiesener
Mehrwertsteuer versendet. Diese Hardware ist Umtausch- und
Rückgaberecht ausgeschlossen. Dieses Angebot richtet sich ausschließlich an gewerbliche Käufer.
