DataVideo BDL-1602 Bundle


Lieferzeit: 10 Werktage

DataVideo BDL-1602 Bundle

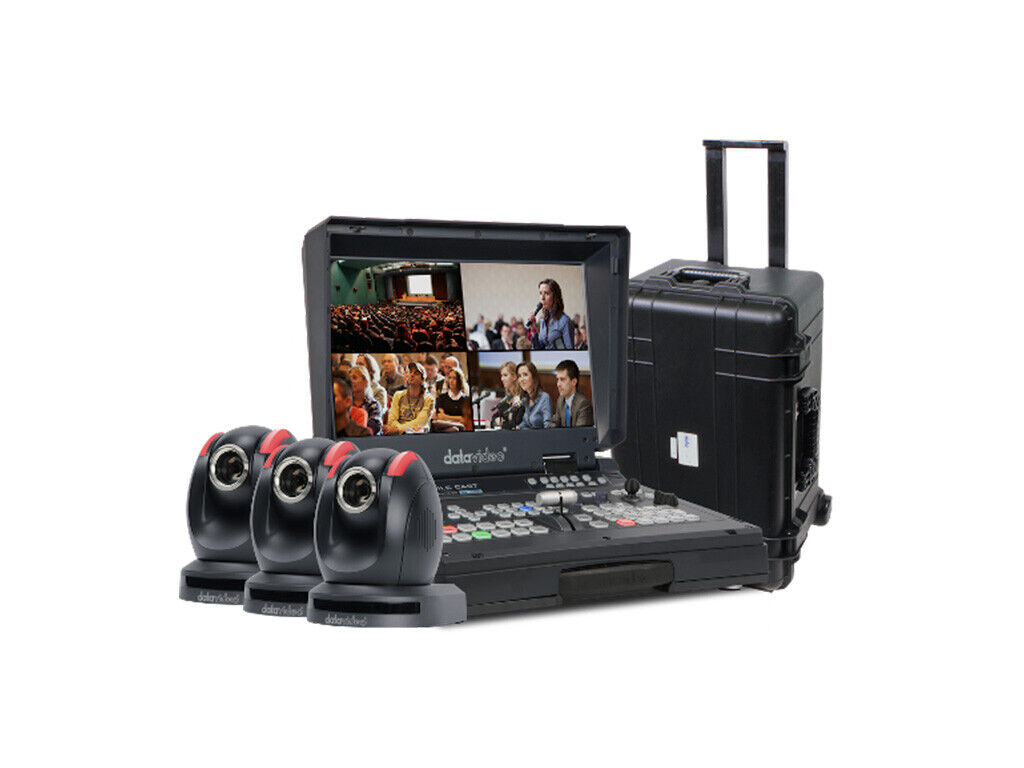

Bundle that consists of
• 1 HS-1600T
• 3x PTC-150
• HC-800 case

Our other ready-for-production bundle, BDL-1602 features the same setup but three PTC-150TL cameras instead of the PTC-140T. This bundle brings you the same easy setup and production technology but with broadcast quality video. PTC-150TL has a 30x optical zoom lens for fast and accurate close ups. With up to 4 presets per camera you will find the right shot time and time again.

4-Channel HD/SD HDBaseT Portable Video Streaming Studio

The World’s first single wire switcher with built-in encoder.

The HS-1600T is a 6-in-1 product that will simplify your workflow. It is a portable HDBaseT hand carried studio that has a switcher, monitor, camera controller, audio mixer, streaming encoder, and recorder built in. What more do you need to execute your production other than PTC-150TL HDBaseT PTZ cameras?

The built-in HDBaseT technology allows receiving of 1080p signals from three PTC-150TL or PTC-140T HDBaseT PTZ cameras via CAT6 cable. It features PoE to provide power to three PTC-150TL or PTC-140T cameras, making installation fast and easy. Keeping things user friendly, you only need to push one button to stream to your preferred CDN and record to a SD card simultaneously.

Another great feature of the HS-1600T is the integrated joystick for controlling the pan, tilt, and zoom of the PTC-150TL cameras. You can also adjust focus and iris, as well as access the camera’s menu. There are four preset buttons for each camera, making it easy for an operator to recall preset shots with a press of a button.

The all inclusive features of the HS-1600T make it ideal for various applications such as live events, worship, seminars, and corporate presentations.

• Supports up to FHD 1080p
• Built-in HDBaseT technology allows control of up to three PTC-150T or PTC-140T Pan, Tilt, and Zoom cameras, as well as send power to PTC-150Ts by PoE.
• Support different bitrate for recording to SD card and streaming function
• One button set up for recording and streaming
• Broadcast quality H.264 network streaming
• Pan, tilt, and zoom with speed control by Joystick
• 4 video inputs (RJ-45 x 3 + HDMI x 1)
• 3 video outputs (HDMI x 3)
• Audio inputs: XLR Analogue x 2 + RCA Analogue (L/R) x 2
• Flexible Mix/Effects: PIP, WIPE, Mix, Fade
• Tally Output
• One 17.3-inch with a resolution of 1920×1080 dots

Die Ware ist
original verpackt und wird mit Rechnung und ausgewiesener
Mehrwertsteuer versendet.
Diese Hardware ist Umtausch- und
Rückgaberecht ausgeschlossen. Dieses Angebot richtet sich ausschließlich an gewerbliche Käufer.
