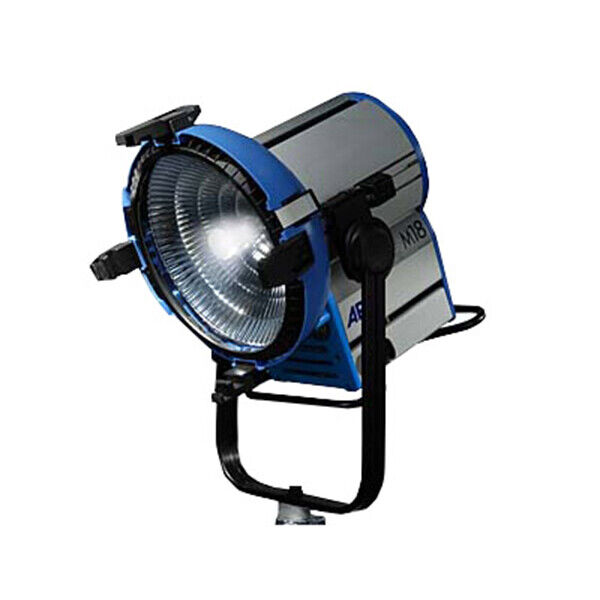

The M18 is an 1800W ARRIMAX style lamphead, combining the Academy Scientific and Engineering. Award-winning lens-less optical technology of the ARRIMAX with the innovative True Blue design. The result is an exciting new class of HMI, as small as a 1200W PAR but with a 70 percent higher light output. The “BABYMAX” gives a remarkably even beam spread that casts crisp shadows and is adjustable from 20-60 degrees without requiring spreader lenses.


Technical Details

Power:	1200 / 1800W
Lamp Type:	HMI 1200W / SE G38, HMI 1800W / SE G38
Supply Voltage:	100V / 140V
Correlated Color Temperature:	6000K
Lamp Base:	G38
Lens Diameter:	250mm
Barn Door Size:	344mm
Filter Insertion Size:	330mm / 13″
Mounting:	Spigot 28mm
Packed Size:	550 x 510 x 690mm / 21,65″ – 20,08″ – 27,16″
Packed Volume:	0,19m³
Weight:	10,5kg
Packed Weight:	13,7kg
Protection Class:	IP 23
Compliance:	CE, CB-GS, cNRTL



• Lensless Arrimax Technology

• New 1800W lamp

• Virtually the same size as a 1200W lamphead but more than 70 percent brighter

• Runs from most domestic sockets world-wide

• Uses existing 575/1200 cables

• Can also be used with 1200W lamps and ballasts

• Cross cooling allows safe operation at any tilt angle

• True Blue tilt lock holds even heavy Chimeras

• Easy maintenance

• Weather resistant to IP23

components :
lamphead    L1.37600.B
filter frame    L2.80970.0
barndoor    L2.39870.0
7mt cable    L2.75600.0
1200/1800W  EB    L2.76625.0
with international connector
