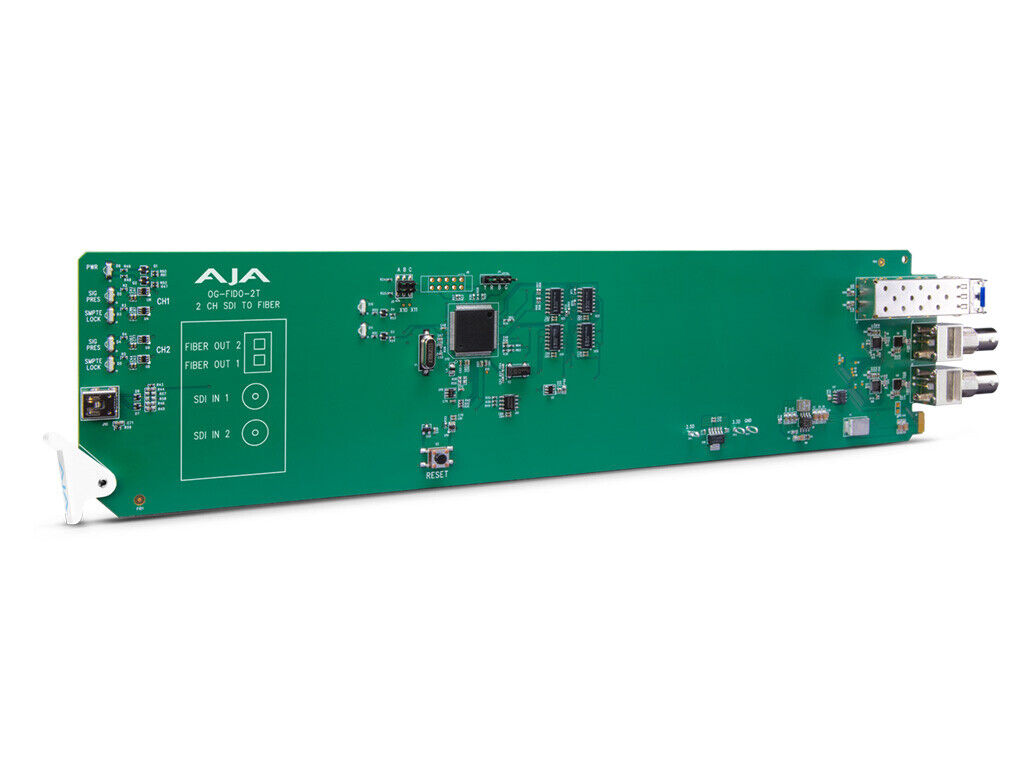

AJA OG-FIDO-2T openGear 2-Channel 3G-SDI to Single Mode LC Fiber Transmitter

805,18

Lieferzeit: 10 Werktage

AJA OG-FIDO-2T

openGear 2-Channel 3G-SDI to Single Mode LC Fiber Transmitter with DashBoard Support

The OG-FiDO-2T is a state of the art, openGear compatible, 2-channel 3G-SDI to Fiber converter, enabling 3G-SDI signals to be extended up to 10 km (32,808 ft) over standard single mode fiber optic cable. The two 3G-SDI inputs are completely independent allowing different 3G-SDI rates to be carried on each channel.

Designed for use in high density openGear’s 2RU frames including AJA’s OG-X-FR frame, new DashBoard Software support on Windows®, macOS® and Linux® offers remote control and monitoring of the openGear architecture and provides convenient and industry standard configuration, monitoring and control options over a PC or local network.

Features
• Video Formats: 150 Mbps – 3 Gbps, format agnostic
• Inputs: 2x Independent 3G-SDI Inputs, BNC connectors
• Outputs: 2x Independent single mode optical fiber, LC connectors
• Monitor via openGear DashBoard
• Input Present and Input SMPTE Lock LEDs
• Automatic detection and re-clocking
• 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps – Auto Select
• All other rates are passed through and not reclocked
• Wavelength: 1260-1620 nm
• Optical Power: -5dBm (min), 0dBm (max)
• Power: 2.5 watts
• Hot-swap capable
• Compatible with OGX, OG3 and DFR-8321 openGear frames

Connectivity
The 3G-SDI inputs are re-clocked with best-in-class input jitter tolerance. 3G-SDI rates of 270Mb, 1.5Gb, and 3Gb are supported. The fiber connector is attached to the main card for added reliability and cost savings.

openGearCompatibility
The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the future of rackframe products.

Download DashBoard Software
DashBoard software offers quick and convenient configuration and control of openGear cards on macOS, Windows and Linux.


Flexible I/O
The modular rear panel allows custom I/O connections per card (included with individual cards).

Failsafe
The optional redundant power supply provides a secondary power source in the event of a primary power failure.

Ethernet Access
A standard Ethernet connection allows the frame to be accessed via the Dashboard application for overall frame communication. Optional per-card Ethernet access can be installed in the frame for advanced communication with compatible openGear cards.

Industry-Leading Support
AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your openGear installation, configuration, operation or encounter any technical issue, AJA Support will work with you to get up and running.

OpenGear products are covered by a generous five year international warranty.

AJA Mini-Matrix
Information on the complete line of AJA Rackframes and cards are now available in the Mini-Matrix mobile app on iOS. AJA product are extensive and this app helps you find the right converter for any situation, wherever you are.

Individual products have links back to the main AJA website for more details and you can email product information directly from the app. The free AJA Mini-Matrix app for iPad® and iPhone® is available now in the Apple iTunes® Store.

Tech Specs

Video Formats
  • 150 Mbps – 3 Gbps, format agnostic
Video Input Digital
  • 2-Channel independent 3G-SDI BNC Inputs, SMPTE-259/292/424
Video Output Digital
  • 2-Channel independent Single Mode LC Fiber Outputs, SMPTE-297
  • Nominal Wavelength: 1310 nm
  • Optical Power: -5dBm (min), 0dBm (max)
  • Extinction Ratio: 7.5dB (Typ)
Reclocking
  • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps – Auto Select
  • All other rates are passed through and not reclocked
User Interface
  • openGear DashBoard network control software via Windows, macOS or Linux
Size (w x d x h)
  • openGear standard form factor, front slot and rear card. Two slots required for each card.
Weight
  • 0.5 lb (0.3 kg)
Power
  • openGear frame compatible, 2.5 watts max per card
Environment
  • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)
