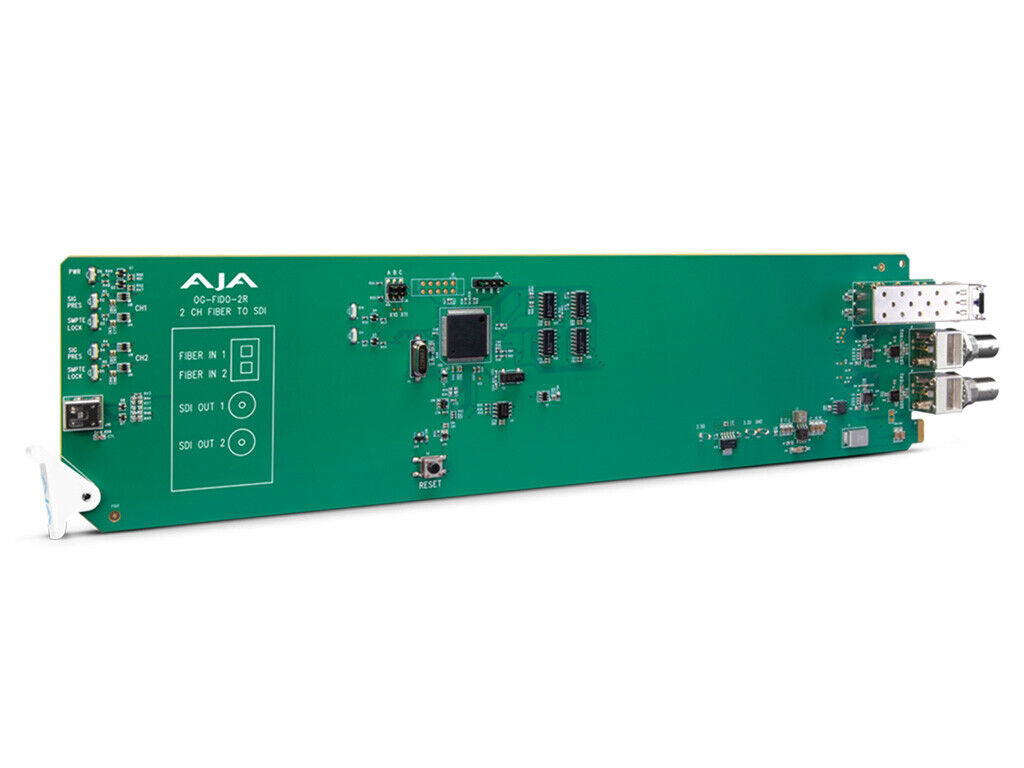

The OG-FiDO-2R-MM offers unmatched flexibility and cost efficiency for 3G-SDI Fiber conversion, allowing for cable runs up to 700 m (2296 ft) for OM4 and 300 m (984 ft) for OM3 for Multi-Mode* fiber optic cables – useful for eliminating ground loop problems.
Designed for use in high density openGear 2RU frames including AJA’s OG-X-FR frame, new DashBoard software support on Windows®, macOS® and Linux® offers remote control and monitoring of the openGear architecture and provides convenient and industry standard configuration, monitoring and control options over a PC or local network.
• Video Formats: 150 Mbps – 3 Gbps, format agnostic
• Inputs: 2x Multi-Mode LC Fiber
• Outputs: 2x 3G-SDI BNC
• Monitor via openGear DashBoard
• Input Present and Input SMPTE Lock LEDs
• Automatic detection and reclocking
• 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps – Auto Select
• Nominal Wavelength: 850 nm
• Power: 2.5 watts
• Hot swap capable
• Compatible with OGX, OG3 and DFR-8321 openGear frames
The fiber inputs are reclocked with best in class input jitter tolerance. 3G-SDI rates of 270Mb, 1.5Gb, and 3Gb are supported. The fiber connector is attached to the main card for added reliability and cost savings.
The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the future of rackframe products.
DashBoard software offers quick and convenient configuration and control of openGear cards on macOS, Windows and Linux.
The modular rear panel allows custom I/O connections per card (included with individual cards).
The optional redundant power supply provides a secondary power source in the event of a primary power failure.
A standard Ethernet connection allows the frame to be accessed via the Dashboard application for overall frame communication. Optional per-card Ethernet access can be installed in the frame for advanced communication with compatible openGear cards.
AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your openGear installation, configuration, operation or encounter any technical issue, AJA Support will work with you to get up and running.
OpenGear products are covered by a generous five year international warranty.
