AJA KONA 1 (Tall) Streamlined Capture and Playback over 3G-SDI


Lieferzeit: 10 Werktage

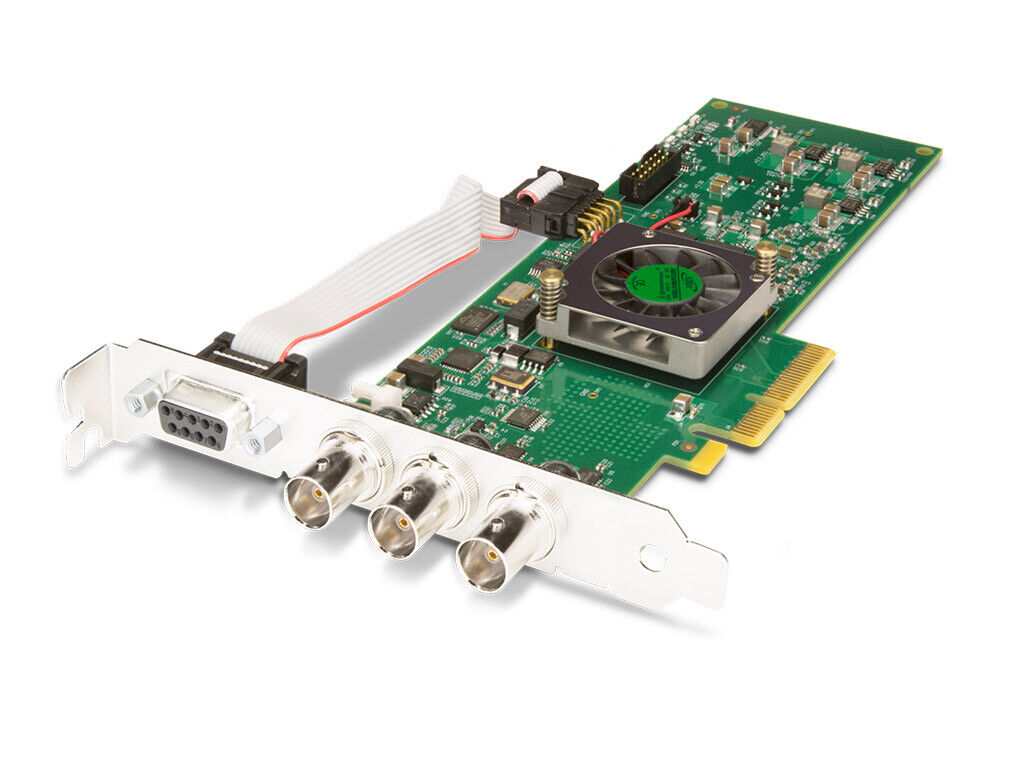

AJA KONA 1 (Tall)

Kosteneffektive Aufnahme und Wiedergabe über 3G-SDI

Die KONA 1 bietet leistungsstarke 3G-SDI Aufnahme und Wiedergabe mit 16 Kanälen embedded Audio, LTC und Unterstützung für bis zu 2K/HD 60p.
Unterstützt durch die AJA Desktop Software mit breiter Dritthersteller Software-Kompatibilität auf Mac und Windows, mit leistungsstarkem SDK Kit für kosteneffektive OEM Aufnahme und Wiedergabe.

– – – – –

Designed for broadcast, post and ProAV, as well as OEM developers, KONA 1 is a robust, cost efficient single-channel 3G-SDI 2K/HD 60p I/O card with serial control and reference/LTC. KONA 1 features standard application plug-ins and supports capture, monitoring and/or playback with software applications from AJA, Adobe®, Avid®, Apple®, Telestream and more as well as AJA SDK support. KONA 1 enables simultaneous monitoring during capture (pass-through) and includes: full size SDI ports supporting 3G-SDI formats, embedded 16-channel SDI audio in/out, Genlock with reference/ LTC input and RS-422.

• Single Channel 3G-SDI Capture or Playback up to 2K/HD 60p

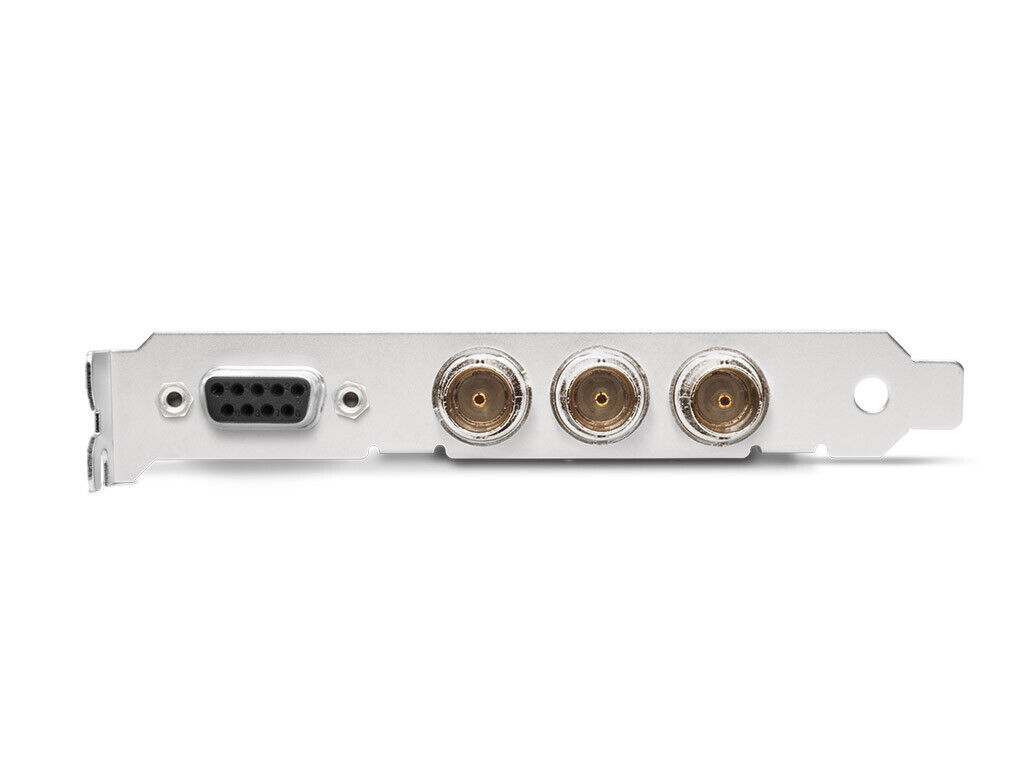

• Full size 3G-SDI BNC ports
• PCIe 2.0 2-lane
• Powerful creative applications support
• Available in low profile PCIe 2.0 without external RS422 port (OEM only)
• ANC capture and processing
• 8/10 Bit YCbCr and RGB framebuffer formats
• 16-ch SDI Embedded Audio I/O, 24-bit 48khz
• HD/SD Genlock, Reference Video or LTC Input (selectable)
• 3-year warranty

Powerful and Simple 3G-SDI Capture and Playback for 2K/HD up to 60p
KONA 1 provides cost-effective and powerful professional 3G-SDI support for robust compatibility with Ingest, Editing and Visual Effects applications.

Capture, Monitor and Output frame accurately up to 2K 60p over 3G-SDI with Adobe, Avid, AJA Control Room and many more applications.

Reference and LTC spigots provide the professional frame stability and time code based reliability you need for broadcast, production, ProAV and creative finishing projects.

Supporting macOS, Windows and Linux, KONA 1 offers cost effective simple connectivity for a range of 2K/HD/SD workflows across 3G-SDI with video pass through on SDI out while capturing.

Powerful platforms for development partners.
AJA’s Developer Program allows partner companies to incorporate AJA products into their systems. By utilizing existing, proven video I/O devices, Developer Partners leverage AJA’s expertise to develop and support these technologies, saving money and getting their integrated products to market more quickly.

Tech Specs

Video Formats
• (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (2K) 2048 x 1080PsF 23.98, 24, 25
• (HD) 1080i 50, 59.94, 60
• (HD) 1080PsF 23.98, 24, 25, 29.97, 30
• (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (HD) 720p 50, 59.94, 60
• (SD) 625i 50
• (SD) 525i 59.94

Video Input Digital
3G-SDI, SMPTE-259/292/296/424

Video Output Digital
3G-SDI, SMPTE-259/292/296/424

Audio Input Digital
16-Channel 24-bit SDI embedded, 48 kHz synchronous

Audio Output Digital
16-Channel 24-bit SDI embedded, 48 kHz synchronous

Reference / LTC Input
• Analog Color Black or HD Tri-level sync

Electrical Interface
2-lane PCIe 2.0

Machine control
• RS-422, Sony 9-pin protocol
• 9-pin D-connector pinout is as follows:
2 RX-
3 TX+
5 No Connection
7 RX+
8 TX-
Shell GND

Size (w x d x h)
0.55″ x 6.61″ x 2.16″ (13.97 x 167.89 x 54.86 mm)

0.3 lb (0.2 kg)

• Safe Operating Temperature: 0 to 40 C (32 to 104 F)
• Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)
