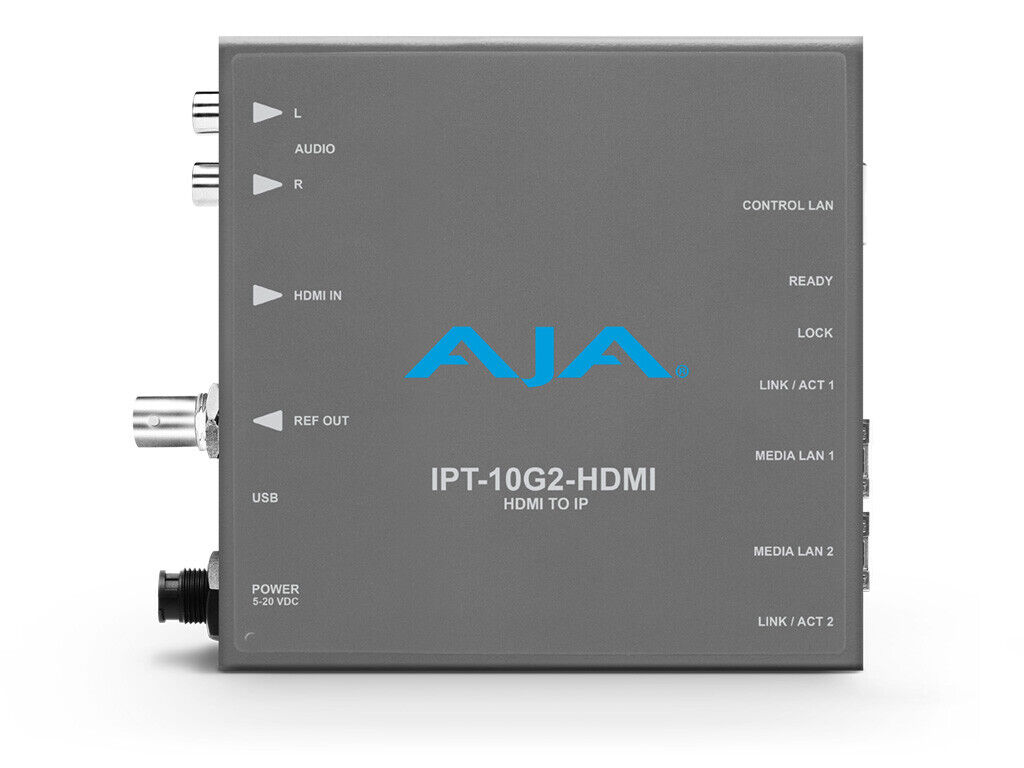

AJA IPT-10G2-HDMI Bridging HDMI to SMPTE ST 2110 Video and Audio
IPT-10G2-HDMI Mini-Converter is designed to bridge HDMI HD signals to a SMPTE ST 2110 network.
The IPT-10G2-HDMI receives HD baseband video plus eight embedded audio channels on a full-size HDMI 1.4b interface, then formats the data for output as SMPTE ST 2110 over 10 GigE. Associated audio from the video stream is extracted, synchronized, and embedded into the SMPTE ST 2110 stream and also output on two channels of analog audio RCA.
2x 10 GigE SFP+ cages are provided, allowing “hitless switching” redundancy protection (ST 2022-7) for critical transmission environments.
IPT-10G2-HDMI Mini-Converter transmits a SMPTE ST 2110 essence from an incoming HD HDMI input source. Providing two SFP+ cases for protection with “hitless switching” (ST 2022-7), it’s rugged, fanless, design is ideal for placement in a wide range of scenarios, including on set, and in studios.
• SMPTE ST 2110 audio, video transmitter
• Rugged, quiet, fanless design
• 1x full size (standard type A) HDMI 1.4b (24/30-bits per pixel) input up to 1080 60p, 4:2:2, 10-bit, YCbCr
• 2x 10 GigE SFP+ cages for media LAN (providing support for ST 2022-7 “Hitless Switching”) with status light
• 1x 1 GigE RJ-45 socket for control LAN with status light
• Full 10-bit pixel processing pipeline
• 2x RCA analog audio output
• 1x mini-USB port for initial network configuration with AJA eMini-Setup software
• Complete control interface on any web browser from a built-in web server
• Customizable control with AJA REST API
• ive year international warranty and support
With new IP based facilities often requiring integration with traditional baseband sources, IPT-10G2-HDMI provides a simple solution for converting HDMI sources, and then formatting and transmitting via ST 2110 IP to provide that content to a range of destinations.
IPT-10G2-HDMI provides two key methods for control. The Control LAN Ethernet port enables control of the Mini-Converter from web browsers on any platform and REST clients. The mini-USB connector facilitates quick and simple initial network configuration and firmware updates.
• 1x RJ-45 (IEC 60603-7) for 10/100/1000 Base-T Ethernet (IEEE 802.3-2012)
• HTTP/1.1 (RFCs 7230, 7231, 7232, 7233, 7234, 7235)
• 1x USB 2.0 Mini-B (IEC 62680-1) connector
• AJA eMini-Setup of network parameters
• Web and REST clients supported
• NMOS transmit (Discovery, Registration and Control)
– According to standards IS-04 v1.2 & IS-05 v1.0.
• AJA REST API (Control Only)
– Discovery is supported via SSDP, allowing AJA REST API to then be used for Control
– Discovery is also supported via MDNS, allowing AJA REST API to then be used for Control
• Ember+ (no Discovery, Control only) v1.6.2
All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.
AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. A locking power connector can’t accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.
Information on the complete line of AJA Mini-Converters is now available as a mobile app on iOS. The Mini-Converter product line is extensive and this app helps you find the right converter for any situation, wherever you are.
Individual products have links back to the main AJA website for more details and you can email product information directly from the app. The free AJA Mini-Matrix app for iPad® and iPhone® is available now in the Apple iTunes® Store.
AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your Mini-Converter installation, configuration, operation or encounter any technical issue, AJA Support will work with you to get up and running.
Mini-Converter products are covered by a generous five year international warranty.
|1x HDMI Standard Type A connector|
|2x RCA analog audio|
|SMPTE ST 2110|
|SMPTE ST 2110|
Die Ware ist
original verpackt und wird mit Rechnung und ausgewiesener
Mehrwertsteuer versendet. Diese Hardware ist Umtausch- und
Rückgaberecht ausgeschlossen. Dieses Angebot richtet sich ausschließlich an gewerbliche Käufer.
