AJA HA5-Fiber HDMI to 3G-SDI over Fiber Video and Audio Converter


Lieferzeit: 10 Werktage

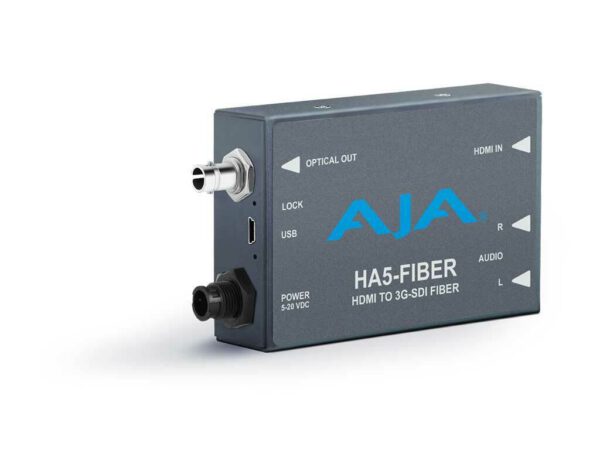

AJA HA5-Fiber

HDMI to 3G-SDI over Fiber Video and Audio Converter

The HA5-Fiber converts a HDMI input to 3G-SDI over single mode 1310 nm fiber optic cable (ST-style fiber connector) for transporting HDMI sources over fiber with 1080p 60 support. The small form factor enables this Mini-Converter to easily fit onto the back of a camera or neatly behind an equipment rack. Embedded 8-Channel audio is supported in the fiber output allowing a convenient single cable audio/video connection up to 10km. The HA5-Fiber also provides 2-Channel RCA style audio inputs for a stereo audio input when needed.

• HDMI to 3G-SDI over fiber
• Supports single mode 1310 nm fiber optic cable with ST transmitter
• Full HDMI input support including embedded audio
• Additional 2-Channel RCA style analog audio (-10dBu nominal) input
• No configuration necessary
• 1m HDMI cable included
• 5 year warranty

Universal Power Supply
All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.

Compact and Portable
AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. A locking power connector can’t accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.

AJA Quality – Guaranteed
All AJA Mini-Converters are covered by a 5 year warranty and AJA’s advanced replacement policy. If a replacement is necessary, AJA will ship a new unit immediately without the need to send the original unit back first, ensuring you are up and running again as quickly as possible.

Tech Specs

Input Formats
  • (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1080i 50, 59.94, 60
  • (HD) 720p 50, 59.94, 60
  • (SD) 625i
  • (SD) 625p
  • (SD) 576p
  • (SD) 525i
  • (SD) 525p
  • (SD) 480p

 NOTE: HDCP content not supported

Output Formats
  • (HD) 1080i 25, 29.97, 30
  • (HD) 1080p 23.98, 24, 25, 29.97, 30
  • (HD) 1080p 50, 59.94, 60 – SMPTE 425-1 Level A mapping structure 1 (1920 x 1080 4:2:2 10-bit YCbCr)
  • (HD) 720p 50, 59.94, 60
  • (SD) 625i 25
  • (SD) 525i 29.97
Video InputHDMI with embedded audio, up to 8-Channels
Video OutputSingle mode optical fiber, ST connector supporting SMPTE-259/292/424 3G/HD/SD-SDI
Audio Input2-Channel RCA style analog audio (-10dBu nominal)
Audio OutputSDI embedded audio
Optical Output
  • Wavelength: 1310nm
  • Output Power: -2dBm typical
Size (w x d x h) 4.4” × 2.4” × 1.0” (112mm × 61mm × 25mm)
Weight0.3 lb (0.2 kg)
  • Uses AJA power supply model DWP-U-R1, included with purchase
  • 100-240V, 50/60 Hz universal input
  • +5V DC regulated, 4.5 watts
  • Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
  • Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)

Die Ware ist
original verpackt und wird mit Rechnung und ausgewiesener
Mehrwertsteuer versendet. Diese Hardware ist Umtausch- und
Rückgaberecht ausgeschlossen.
