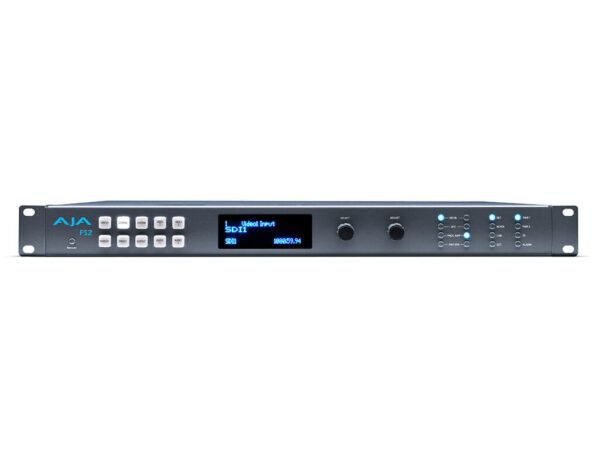

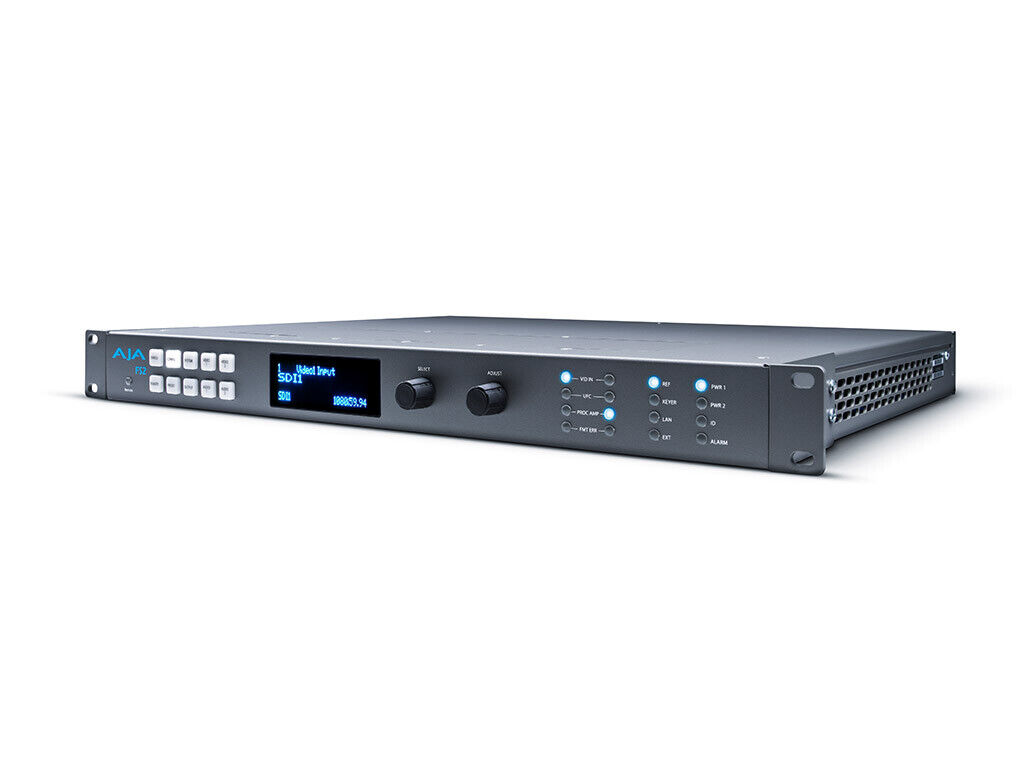

AJA FS2 Konverter

4.671,29

Lieferzeit: 10 Werktage

AJA FS2 Konverter

Technische Daten:

2- kanaliger Framestore mit Dolby Erweiterungsmöglichkeit

• 2 unabhängige I/O Kanäle
• Up/Down/Cross Conversion für beide Kanäle
• 2 eingebaute Key Generatoren
• 3G und Dual Link I/O für beide Kanäle
• HDMI Ein- und Ausgänge
• optional: Dolby E De- und Encoding
• optional Fiber Ein und Ausgänge

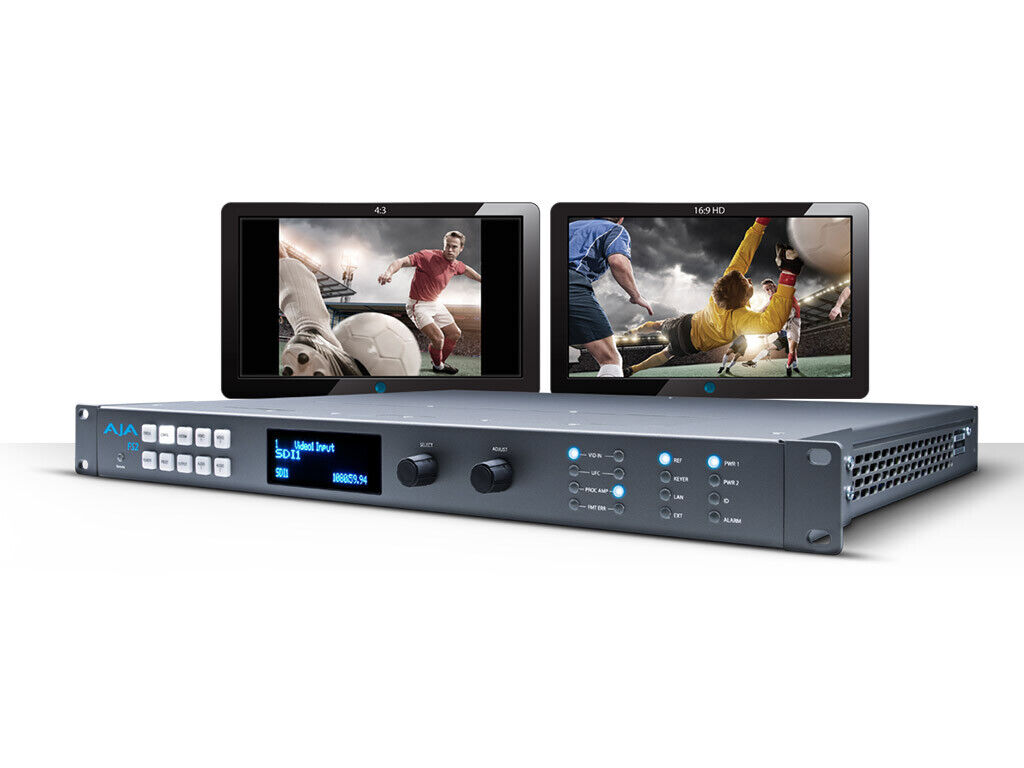

Dual video and audio processors
Offering
huge flexibility and the power to adapt to meet the needs of rapidly
changing environments, FS2 offers unprecedented conversion and frame
synchronization power in a single 1RU space.

FS2 can be used as
two separate Frame Synchronizers/Format Converters, or the two channels
can be linked with the internal FS2 keyer to do the work of three or
more devices – for example HD sidebar keying where both the video and
background graphics are up converted and combined.

AJA hardware conversion technology
AJA’s
powerful hardware conversion technology ensures the highest image
quality for your productions. Key conversion features include:

SD/HD up/down-conversion
SD/SD aspect ratio conversion
HD/HD cross-conversion (720p/1080i)
Up/down/cross-conversion with both the input and converted formats on SD/HD SDI outputs (both synchronized)
HD cross-conversion with simultaneous down-converted SDI output

FS2
can up or down convert between SD, HD, and 3G HD (1080p50/60), and
cross convert between HD formats including 3G HD. Additionally, FS2 has
full input and output signal routing, allowing any I/O port to be
assigned to either processing channel.

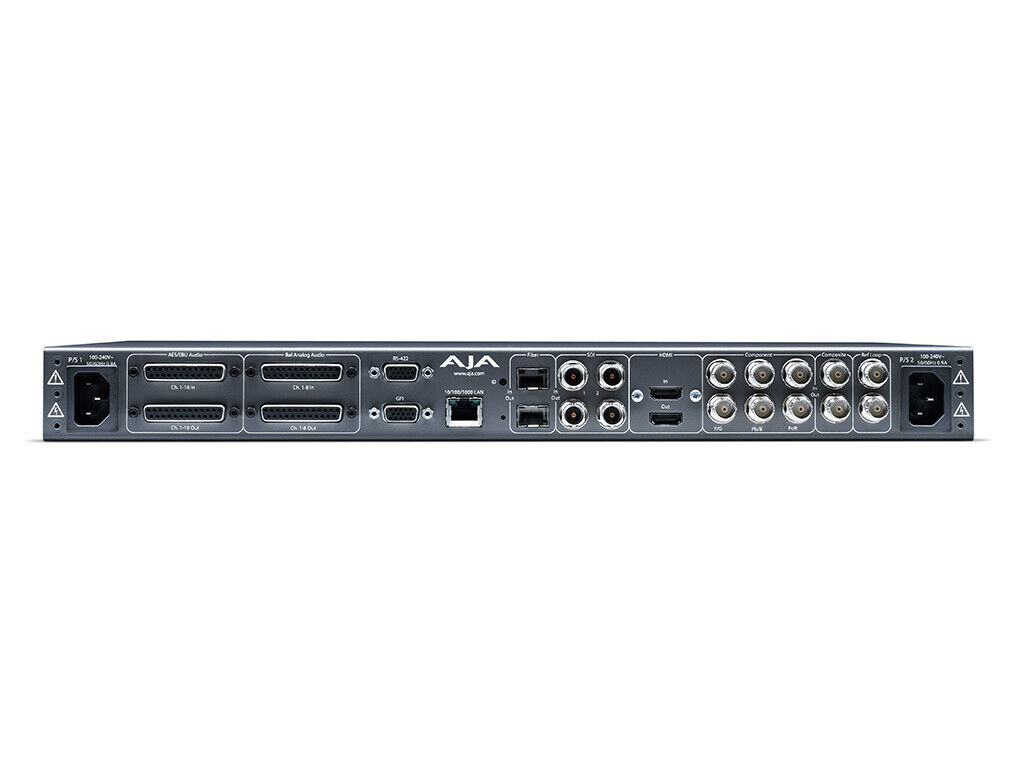

Digital and Analog I/O
Capable
of simultaneously working with two independent streams of 3G/HD/SD
10-bit broadcast-quality video and two independent groups of 16-channel
AES audio, each FS2 video channel supports virtually any input or
output: analog component or composite, 3G/HD/SD-SDI, Dual Link (1.485
Gb), Fiber and HDMI I/O.

For audio, FS2 has two audio processors,
each supporting 16-channel AES/EBU digital audio, 16-channel embedded
audio, and 8-channel balanced analog audio with a variety of controls
for maximum flexibility. The output of each processor can be embedded in
its respective video processor output (SDI, Fiber, or HDMI), or sent to
the AES or balanced outputs. For 3G and Dual Link inputs, the audio
processors can have access to all 32 channels.

Fiber I/O option
FS2’s
Fiber I/O option allows fiber cable runs of up to 10 kilometers to be
connected directly to the FS2 without the need for separate fiber to SDI
conversion.

Dolby® E option
Optional Dolby E
cards give FS2 the ability to extract Dolby encoded signals, which can
then be assigned just like any other audio input to FS2.

Remote configuration and control
FS
units are network ready and support SNMP monitoring and web-based
remote control. Units can be connected to any Ethernet network via the
built-in 10/100/1000MB Ethernet port, allowing control and configuration
of multiple FS units from any web browser on a connected computer.
Configurations can be saved and applied to multiple units, ensuring
consistency and quick configuration in large installs.

To
integrate smoothly with the existing automation of a facility, FS2 can
also receive external GPI commands to trigger a variety of functions,
from freezing an input source to switching between saved presets.

Closed caption conversion
FS2
supports closed captioning and the conversion of closed captioning
between SD and HD formats – including full conversion of CEA-608
captions to the CEA-708 standard. FS2 can preserve closed captioning
even when converting between formats, removing the need to re-insert
closed captions after conversion.

Active Format Description
Automatically
sets Active Format Description information to match the converted
signal. This means AFD information does not have to be inserted after
conversion and provides accurate information for devices that understand
AFD.

Technische Spezifikationen

Video Formats
  • 525i 29.97
  • 625i 25
  • 720P 50, 59.94, 60
  • 1080i 25, 29.97, 30
  • 1080PsF 23.98, 24
  • 1080p 24, 25, 30

Notes:
1. In the case of 1080pSF/23.98 input – and when 1080i59.94 (or 525) is
selected as an output format, the FS2 automatically does 3:2 pulldown
to get the correct frame rate. Similarly, in the case of 1080pSF/24
input, FS2 automatically does 3:2 pulldown to get the correct frame
rate.
2. When passing 24 or 60 framerate video, output is high definition.

Video Input Digital
  • Dual SD/HD/3G SDI, SMPTE-259/292/296, 8- or 10-bits
    • Single Link 4:2:2 (1 x BNC each)
  • Dual Fiber (SC or LC) SD/HD/3G SDI, SMPTE-259/292/296, 8- or 10-bits (optional)
  • HDMI v1.3 30 bits/pixel, RGB or YUV, 2.25 Gbps, SD, HD, 1080p-50/60
Video Input Analog
  • HD component YPbPr, SMPTE-274 (3 x BNC)
    • 12-bit A/D, 2x oversampling
  • SD Component (3 x BNC)
    • SMPTE/EBU N10, Betacam 525 line, Betacam 525J
    • 12-bit A/D, 4x oversampling
    • +/- .25 dB to 5.5 MHz Y Frequency Response
    • +/- .25 dB to 2.5 MHz C Frequency Response
    • .5% 2T pulse response
    • <2 ns Y/C delay inequity
  • SD Composite
    • 12-bit A/D, 4x oversampling
Video Output Digital (all simultaneously active)
  • Dual SD/HD/3G SDI, SMPTE-259/292/296, 8- or 10-bits
    • Single Link 4:2:2 (1 x BNC each)
  • Dual Fiber (SC or LC) SD/HD/3G SDI, SMPTE-259/292/296, 8- or 10-bits (optional)
  • HDMI v1.3 30 bits/pixel, RGB or YUV, 2.25 Gbps, SD, HD, 1080p-50/60
Video Output Analog (all simultaneously active)
  • HD component YPbPr, SMPTE-274 (3 x BNC)
    • 12-bit D/A, 2x oversampling
  • SD Component (3 x BNC)
    • SMPTE/EBU N10, Betacam 525 line, Betacam 525J
    • 12-bit D/A, 4x oversampling
    • +/- .25 dB to 5.5 MHz Y Frequency Response
    • +/- .25 dB to 2.5 MHz C Frequency Response
    • .5% 2T pulse response
    • <2 ns Y/C delay inequity
  • SD Composite
    • 12-bit D/A, 4x oversampling
Audio Input Digital
  • 16-channel, 24-bit SMPTE-259 SDI embedded audio, 48kHz sample rate, Synchronous
  • 16-channel,
    24-bit AES/EBU audio, 48kHz sample rate, Synchronous or
    Non-synchronous, Internal sample rate conversion (8 x XLR via 25-pin
    breakout cable)
  • Optional Dolby E Decoding
Audio Input Analog
  • 8-channel, 24-bit A/D analog audio, 48kHz sample rate, balanced (8 x XLR via 25-pin breakout cable)
    • +12dBu, +15dBU, +18dBu, +24dBu (Full Scale Digital)
    • +/- 0.2db 20 to 20kHz Frequency Response
Audio Output Digital
  • 16-channel, 24-bit SMPTE-259 SDI embedded audio, 48kHz sample rate, Synchronous
  • 16-channel,
    24-bit AES/EBU audio, 48kHz sample rate, Synchronous or
    Non-synchronous, Internal sample rate conversion (8 x XLR via 25-pin
    breakout cable)
  • Optional Dolby E Encoding (future option)
Audio Output Analog
  • 8-channel, 24-bit D/A analog audio, 48kHz sample rate, balanced (8 x XLR via 25-pin breakout cable)
    • +12dBu, +15dBU, +18dBu, +24dBu (Full Scale Digital)
    • +/- 0.2db 20 to 20kHz Frequency Response
Up-Conversion
  • Hardware 10-bit
  • Anamorphic: full-screen
  • Pillar box 4:3: results in a 4:3 image in center of screen with black sidebars
  • Zoom 14:9: results in a 4:3 image zoomed slightly to fill a 14:9 image with black side bars
  • Zoom Letterbox: results in image zoomed to fill full screen
  • Zoom
    Wide: results in a combination of zoom and horizontal stretch to fill a
    16:9 screen; this setting can introduce a small aspect ratio change
Down-Conversion
  • Hardware 10-bit
  • Anamorphic: full-screen
  • Letterbox: image is reduced with black top and bottom added to image area with the aspect ratio preserved
  • Crop: image is cropped to fit new screen size
Cross-Conversion
  • Hardware 10-bit
  • 1080i to 720P
  • 720P to 1080i
  • 720P to 1080PsF
SD to SD Aspect Ratio Conversion
  • Letterbox: This transforms SD anamorphic material to a letterboxed image.
  • H Crop: Will produce a horizontally stretched effect on the image; transforms anamorphic SD to full frame
  • SD
    Pillarbox: Will produce an image in the center of the screen with black
    borders on the left and right sides and an anamorphized image in the
    center
  • V Crop: Will transform SD letterbox material to an anamorphic image.
Timecode
  • SDI RP188 via SDI BNC
Reference Input
  • Analog Color Black (1V) or Composite Sync (2 or 4V)
  • Looping, non-terminating.
Network Interface
  • 10/100 Ethernet (RJ-45)
  • Embedded web server for remote control
  • VTECS™ protocol for Remote Control Panel
User Interface
  • Alphanumeric display, with dedicated buttons/knobs
Control
  • GPI in/out, 15-pin D-connector
  • RS-422/RS-485, 15-pin D-connector (reserved for future use)
Physical
  • Width: 17.25″ (43.81cm)
  • Depth: 12.5″ (31.75cm)
  • Height: 1RU, 1.75″ (4.44cm)
  • Weight: 7.85lb (3.56kg)
  • Power: 100-240 VAC 50/60Hz (Dual, redundant power supplies), 55W typical; 80W max. 15A max.
  • Environment:
    • Operating temperature: 0 to 40 degrees C
    • Relative humidity: 0 to 90%, non-condensing

Die Ware ist original Verpackt und wird mit Rechnung und ausgewiesener Mehrwertsteuer versendet. Hardware ist vom Umtausch und Rückgaberecht ausgeschlosen.
Verkauf nur an gewerbliche Kunden.
