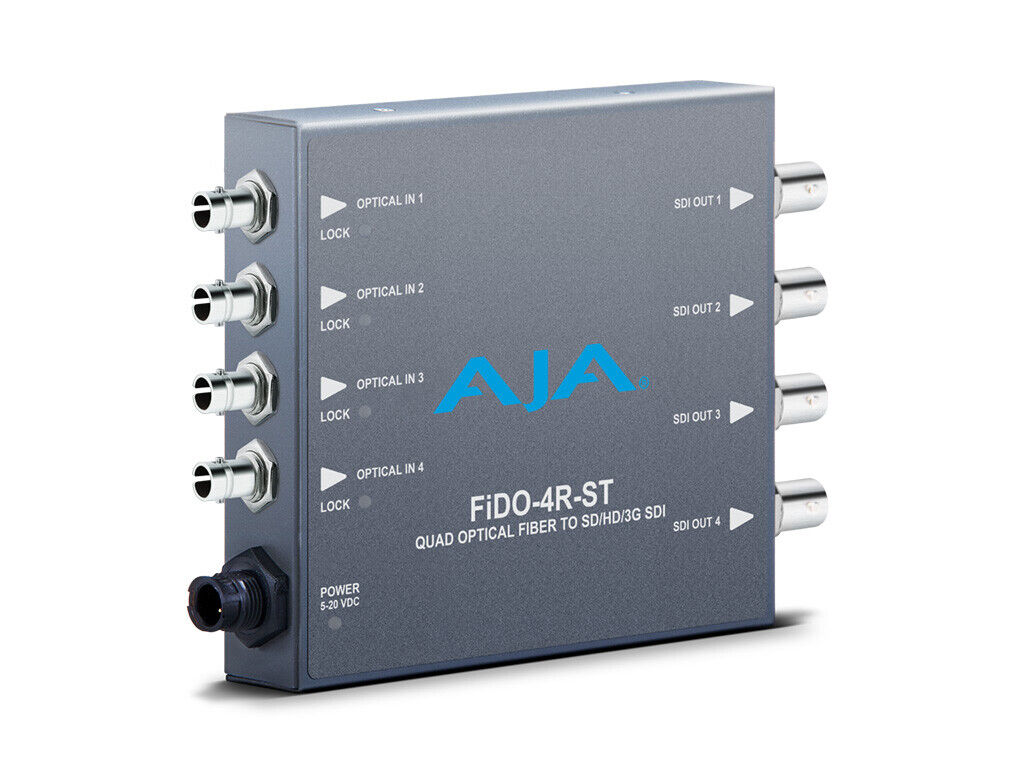

AJA FiDO-4R-ST 4-channel Optical Fiber to 3G-SDI Receiver
FiDO is a family of SDI/Optical Fiber converters. FiDO allows the transport of SDI, HD-SDI, and 3G SDI over distances up to 10km using standard single- mode fiber optic cable, with your choice of LC, ST, or SC connectors, depending on the converter model. FiDO converters meet all relevant SMPTE specifications and are rugged, versatile, and suitable for indoor or outdoor use.
Features
• Transport of SDI, HD-SDI, and 3G HD-SDI over single mode optical fiber
• Auto-detection of video format
• All SDI Ancillary data including embedded audio is passed
• LC, ST OR SC fiber connectors
• Simplex or Duplex models available
• All inputs, either SDI or fiber, are equalized and re-clocked
• ASI compatible
• Useful for eliminating ground loop problems
• 5-20VDC power supply (included)
• 5 year warranty
The AJA FiDOs are designed to work with single-mode fiber, 1310nm wavelength. Some user have had success with multi-mode, but it’s a total case-by-case thing, and AJA cannot guarantee it will work as AJA don’t test with multi-mode.
Features
• Transport of SDI, HD-SDI, and 3G HD-SDI over single mode optical fiber
• Auto-detection of video format
• All SDI Ancillary data including embedded audio is passed
• LC, ST OR SC fiber connectors
• Simplex or Duplex models available
• All inputs, either SDI or fiber, are equalized and re-clocked
• ASI compatible
• Useful for eliminating ground loop problems
• 5-20VDC power supply (included)
• 5 year warranty
The AJA FiDOs are designed to work with single-mode fiber, 1310nm wavelength. Some user have had success with multi-mode, but it’s a total case-by-case thing, and AJA cannot guarantee it will work as AJA don’t test with multi-mode.
Die Ware ist
original verpackt und wird mit Rechnung und ausgewiesener
Mehrwertsteuer versendet. Diese Hardware ist Umtausch- und
Rückgaberecht ausgeschlossen. Dieses Angebot richtet sich ausschließlich an gewerbliche Käufer.
