AJA C10DA, Analog Video 1×6 Distribution Amplifier

223,23

Lieferzeit: 10 Werktage

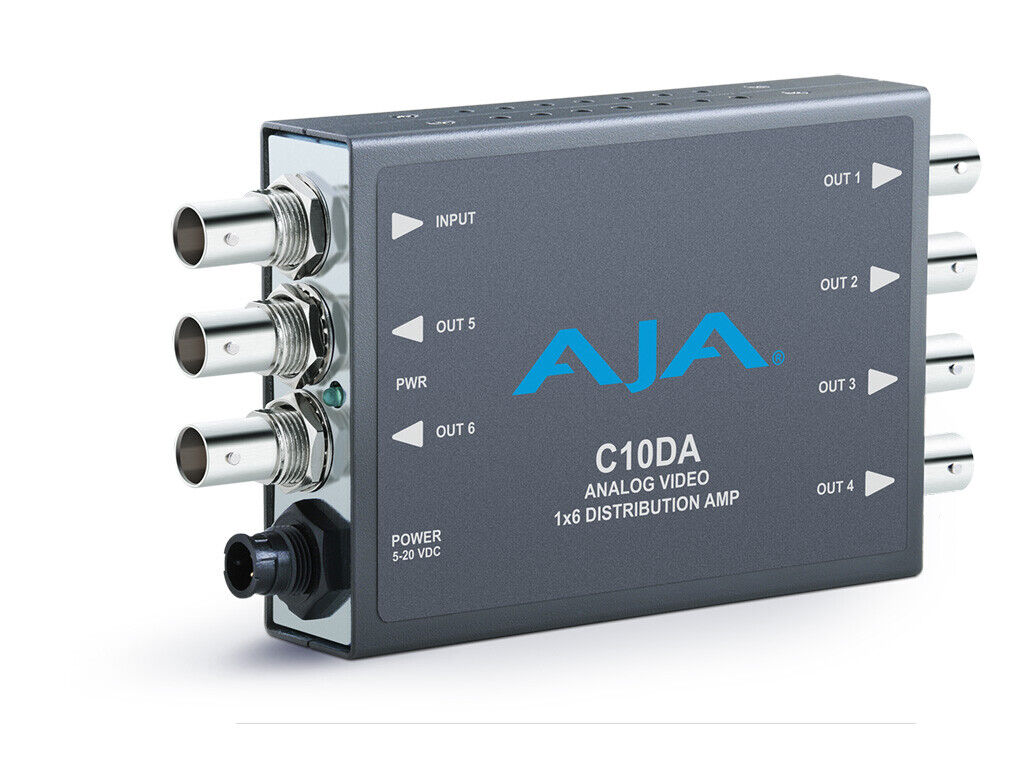

AJA C10DA, Analog Video 1×6 Distribution Amplifier

The C10DA is a 1×6 Analog Distribution Amplifier with support for NTSC and PAL offering the ability to distribute multiple copies of the incoming signal or extend content of composite video with gain adjustment to compensate for long cable runs where needed. The C10DA can also be used to DA Tri-Level sync in an HD facility when a sync signal is fed externally into the Video Input.

Features
• Compact 1 x 6 Analog Distribution Amplifier
– NTSC
– PAL
• May be used to distribute tri-level sync when a syync signal is fed into the Video Input for HD workflows
• Low Cost
• 5 year warranty

Universal Power Supply
All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.

Compact and Portable
AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. A locking power connector can’t accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.

AJA Quality – Guaranteed
All AJA Mini-Converters are covered by a 5 year warranty and AJA’s advanced replacement policy. If a replacement is necessary, AJA will ship a new unit immediately without the need to send the original unit back first, ensuring you are up and running again as quickly as possible.

AJA Mini-Matrix
Information on the complete line of AJA Mini-Converters is now available as a mobile app on iOS. The Mini-Converter product line is extensive and this app helps you find the right converter for any situation, wherever you are.

Individual products have links back to the main AJA website for more details and you can email product information directly from the app. The free AJA Mini-Matrix app for iPad® and iPhone® is available now in the Apple iTunes® Store.

Tech Specs

Formats
  • NTSC
  • PAL
  • Bi-level Reference
  • Tri-level Reference
  • AES3-id
  • LTC
Inputs1 Analog, Differential, 1 x BNC
Outputs6 Analog, 6 x BNC
Termination75 Ohms or nonterminated
Video Bandwidth 0 – 6 MHz +/- 0.1dB
Gain-3dB, -2dB, -1dB, 0dB, +1dB, +2dB, or +3dB, +/- 0.3dB
Diff Gain0.15%, not load dependent
Diff Phase0.1 degree, not load dependent
H/V Tilt< 0.1%
Response Variation< 0.1dB 1 to 6 loads
CouplingDC
Max Common Mode Signal10Vp-p
Return Loss> 35dB to 6 MHz all inputs and outputs
Output Isolation>40dB
User Controls
  • External Dipswitch
  • Termination
  • Gain
Size (w x d x h)5.8″ x 3.1″ x 1.0″ (147mm x 79mm x 25mm)
Weight0.8 lb (0.3 kg)
Power5VDC Regulated, 2 Watts, power supply required, included with purchase
Environment
  • Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
  • Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)

Die Ware ist
original verpackt und wird mit Rechnung und ausgewiesener
Mehrwertsteuer versendet. Diese Hardware ist Umtausch- und
Rückgaberecht ausgeschlossen.

Zusätzliche Information

Marke

Herstellernummer

Produktart

ConditionNew
×
