AJA 12GM Compact SDI Transport Converter

1.110,30

Lieferzeit: 10 Werktage

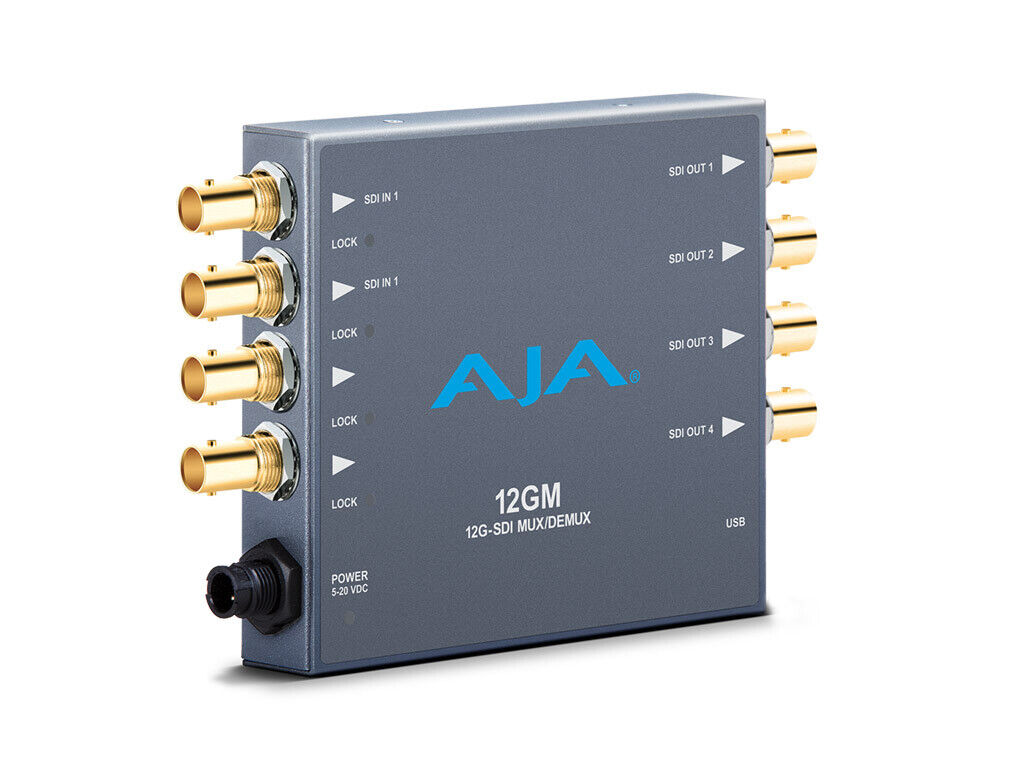

AJA 12GM Compact SDI Transport Converter


12GM is a compact SDI transport converter that enables 12G-SDI to Quad 3G-SDI and Quad 3G-SDI to 12G-SDI conversion. The Muxer/ DeMuxer supports 4K, UltraHD, 2K, HD and SD workflows and conversions from multi-link SDI signals to single link SDI signals, and vice versa at 12G, 6G, 3G and 1.5G bit rates.

Features
• Compact 12G to/from 3G conversion
• SMPTE 2082 inputs and outputs configurable to SMPTE 425 inputs and outputs
• Converts SMPTE 425M A to/from SMPTE 425M B
• Fully equalizing and reclocking with jitter attenuation
• If SMPTE 292M is input, all outputs are 1.5G SMPTE 292M
• DWP-U-R1 power supply included
• Five Year warranty

Universal Power Supply
All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.

Compact and Portable
AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. A locking power connector can’t accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.

Tech Specs

Video Formats
  • (4K) 4096x2160p
  • (UltraHD) 3840x2160p
  • (2K) 2048x1080p
  • (HD) 1920x1080p
  • (HD) 1920x1080i
  • (HD) 1280x720p
  • (SD) 720x576i
  • (SD) 720x480i
Video Input/Output Digital
  • 4 x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
  • 4:2:2 YCbCr
  • 4:4:4 YCbCr/RGB
  • 8 or 10 bit
  • Two Sample Interleave (2SI) source mapping
  • Square Division (Quadrant) source mapping
  • Single Link 12G-SDI, SMPTE 2082-10
  • Single Link 6G-SDI, SMPTE 2081-10
  • Single Link 3G-SDI Level A, B-DL, or B-DS, SMPTE 425-1
  • Dual Link 3G-SDI Level B-DS (2 x 3G), SMPTE-425-3
  • Quad Link 3G-SDI Level A or B-DL (4 x 3G), SMPTE-425-5
  • Dual Link HD-SDI (2 x 1.5G), SMPTE-372
  • Quad Link HD-SDI (4 x 1.5G)
  • Single Link HD, SMPTE-292
  • Single Link SD, SMPTE-259
  • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1920 x 1080i 25, 29.97, 30
  • (HD) 1280 x 720p 50, 59.94, 60
  • (SD) 625i 25
  • (SD) 525i 29.97
Cable Equalization

(Belden 1694A coax)

  • 12 Gbps, 90m
  • 6 Gbps, 125m
  • 3 Gbps, 160m
  • 1.5 Gbps, 200m
  • 270 Mbps, 470m
Audio Input / Output DigitalSDI embedded audio, 24-bit, 16-Channel
User InterfaceUSB port used with supplied cable and Mini-Config software application to configure device via Mac or Windows.
Size (w x d x h)5.76” x 4.02” x 0.90” (146mm × 102mm × 23mm)
Power
  •  5-20VDC regulated, 12 watts, power supply required, included with purchase
  • AC Adapter: 100-240VAC, 50/60 Hz, universal input
Environment
  • Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)*
  • Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)

*12GM uses approximately 12 watts of power and convection cooling. It will be very warm to the touch, which is normal. When installing the unit, mount in a location where it has access to air for proper cooling. Do not stack the 12GM with other Mini-Converters
