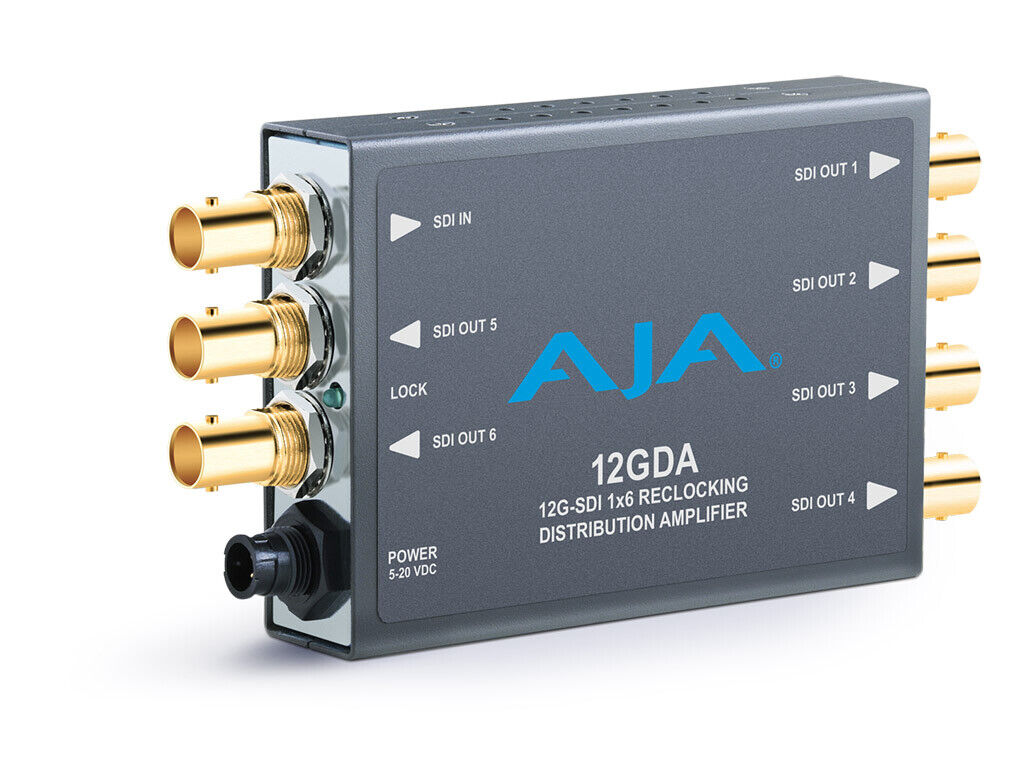

AJA 12GDA, 12G/6G/3G/HD/SD-SDI Distribution Amplifier


Lieferzeit: 10 Werktage

Nicht vorrätig

AJA 12GDA, 12G/6G/3G/HD/SD-SDI Distribution Amplifier

12GDA is a miniature 1×6 12G-SDI re-clocking distribution amplifier that allows facilities to save on cable runs and install times. With support for 12G-SDI for 4K/UltraHD single link workflows, the format-agnostic device features six separately buffered SDI outputs identical to the recovered input. It also offers automatic input detection, re-clocking and cable equalization, as well as a throw down package and LED signal detection indicator.

• Compact 12G-SDI distribution
• Six separately buffered outputs
• Miniature size
• 12G cable equalization (1694 coax)
• 12 Gbps, 90m
• 6 Gbps, 125m
• 3 Gbps, 160m
• 1.5 Gbps, 200m
• 270 Mbps, 470m
• 12G/6G/3G/HD/SD-SDI input, auto sensing
• Passes all ancillary data
• DWP-U-R1 power supply included
• Five year warranty

Universal Power Supply
All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.

Compact and Portable
AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. A locking power connector can’t accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.

Tech Specs

Video Formats

 100 Mbps – 12 Gbps, format agnostic

Video Input Digital

1 x 12G-SDI BNC, SMPTE-259/292/424/2081/2082

Video Output Digital

6 x 12G-SDI BNC, SMPTE-259/292/424/2081/2082

Cable Equalization

(Belden 1694A coax)

  • 270 Mbps, 470m
  • 1.5 Gbps, 200m
  • 3 Gbps, 160m
  • 6 Gbps, 125m
  • 12 Gbps, 90m
  •  270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps – Auto Select
  • All other rates are passed through and not reclocked
Size (w x d x h)5.8″ x 3.1 x 1″ (147mm x 79mm x 25mm)
  •  +5-20VDC, regulated, 3 watts, power supply required, included with purchase
  • AC Adapter: 100-240VAC, 50/60 Hz, universal input

0.7 lb (0.3 kg)

  • Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
  • Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)

Die Ware ist
original verpackt und wird mit Rechnung und ausgewiesener
Mehrwertsteuer versendet. Diese Hardware ist Umtausch- und
Rückgaberecht ausgeschlossen.
