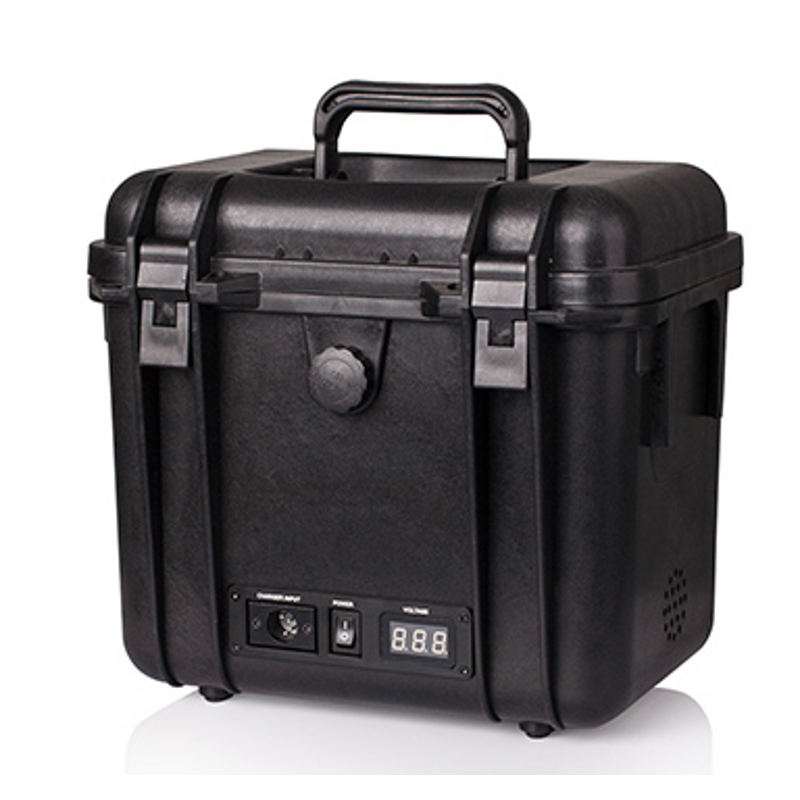

SWIT S-4020, Power Station Box (12V/24V)

S-4020 power station box can install 4 pieces of V-mount batteries which can provide more power and longer power supply time comparing to single Li-ion battery.
It can meet the demand of different users, and is very suitable for Cine cameras, lightings for Film & Television and mobile studios.

Mount : 4x V-Mount
Output: up to 15A, 180W
Dimensions : 290x221x278mm
Weight : 3,5kg

Specials :
4x V-Mount Connectors,
1x XLR 4-pin 12V Output
1x XLR 2-pin 24V Output
LED Indicator
Recommended Battery-Type : 4x SWIT S-8340S

Considering the size, weight, power effeciency, and usability, S-4020 is designed to be powered with 1-4 V-lock batteries, which are widely used and easy to find.
The following SWIT V-mount batteries will fit in the box:
S-8320S, S-8340S, S-8083S, S-8113S, S-8183S, S-8082S, S-8110S, S-8180S.

With auto-balanced circuit, S-4020 can be powered by 1-4 batteries, with different capacity.
The max output is limited by the batteries’ output.
Select 4-pin XLR 11-16.8V 15A(180W) or 3-pin XLR 22-33.6V15A(360W) to DC output
And S-4020 is designed with multiple circuit protections, such as over load, over voltage, and etc.

With a LED panel, S-4020 can display real-time voltage, and when battery capacity is too low, the LED panel will keep flashing to remind you to change or charge batterie
With the supplied 5A charger, user can charge the batteries in the S-4020 directly, without taking out of them.

Guarantee : 2 years
Taric : 8504405590
Country of Origin : China


Die Ware ist
original verpackt und wird mit Rechnung und ausgewiesener
Mehrwertsteuer versendet. Diese Hardware ist Umtausch- und
Rückgaberecht ausgeschlossen.
Dieses Angebot richtet sich ausschließlich an gewerbliche Käufer.
