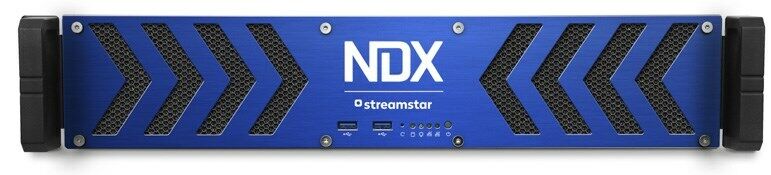

Streamstar NDX 400 – 4 channel IP and NDI live production studio – New product!

4.630,30

Lieferzeit: 10 Werktage

Streamstar NDX 400 Promotion Price / Einführungspreis

FEATURE STATUS DESCRIPTION

Total camera inputs – vision mixer 4 Vision mixer SW GUI
features 4 live camera preview monitors that function as switches for
touch-screen switching operation

NDI input 4 Supported resolutions and framerates: 720p25,
720p50, 1080p25, 1080i50, 1080p50

IP Stream input 4 720p25, 720p50, 1080p25, 1080p50 in
H264+AAC, 10 Mbps max bitrate per input, supported protocols: RTSP, MPEG-TS,
UDP, RTMP PULL, HLS PULL

External graphics input with transparency over NDI 1
Supported resolutions and framerates: 720p25, 720p50, 1080p25, 1080p50

NDI output – PGM 1 Supported resolutions and framerates:
720p50, 1080p25, 1080p50

3G/HD-SDI output – PGM (HDMI included ) optional Supported
resolutions and framerates : 720p50, 1080i50, 1080p50

Multiview output ( GPU based HDMI or DP ) • 3 modes
available select from: PGM / Camera Grid / PGM + Camera Grid combined

USB audio card support (external audio mixer) • External
audio mixer as a source support

Media playback • Playback, Preview, Add to Playlist, Mute,
Loop, Virtual in/out points trim

Playlists media management system • Creation of virtual
playlists of media files to assemle blocks of content to be used in PGM with
playback, loop, audio mute, automatic pause / continue functionality when
switched

Real time camera preview, media, graphics • Preview of all
sources

Switching / Mixing / PIP & Split layouts • Cut, Autocut,
Crossfade, Transition wipes (9), PIP & SPLIT SCREEN templates (9) editable

Automated Scene manager – Show automation optional To be
released in Q2/2020

Graphics DSK – unlimited • 4 DSK layers with transparency:
1. CG – Character Generator | 2. OVERLAYS – flv, mov, png | 3. LOGO (Bug) –
flv, mov, png | 4. INGEST – External graphics ingest over NDI

Internal CG with templates • Creation of editable live
graphics – lower 3rds, titles, crawls or timers with dynamic data controls
based on supplied templates or user graphics

NDI PGM Recording • 720p50, 1080p25, 1080p50 – identical to
NDI Output setting

PGM stream recording • Up to 1080p50 @ up to 10Mbps –
identical to Live Streaming setting

Live streaming • Up to 1080p50 @ up to 10Mbps / RTMP/S or TS
(H.264 + AAC)

Simulcasting • Streaming up to 5 simultaneous destinations

Audiomixer • Integrated, full featured audio mixer with
monitoring, audio follow video,audio delay setup, muting, peaking…

Supported Media Playback Formats • mp4, m4v, wmv, mpg, mpeg,
ts, avi, flv

NDI PTZ control • NDI PTZ camera control over NDI based on
provided features availability and depending on the NDI standard


JVC Smart PTZ Control • JVC PTZ camera control over IP –
Motion with presets, Zoom with presets, Camera Groups with presets, Tally,
Auto/Manual modes, Recording, Iris, Gain, Shutter, WB, Zero Config automatic
setup

JVC IP based CCU and Tally • JVC camcorders remote control
over IP – Tally light, Recording On/Off, Auto/Manual modes, Iris, Gain,
Shutter, WB settings, Zero Config automatic setup and network discovery

JVC camcorder IP input stream management • JVC camcorders
remote control over IP – Resolution, Bitrate, IP video stream destination setup

GPIO control • 2 customisable GPIO controls with user
defined parameters to trigger external devices and/or actions

Settings Save and load • Ability to save / load system
settings to create various custom configurations and specify default settings
for system startup

PIP/SPLIT Screen templates editor • Utility application to
customize the provided default PIP/SPLIT Screen templates and to save/load
custom configurations for the Streamstar SW

Crawl CG automated RSS 2.0 data feed • Support for automated
RSS 2.0 data feed to create text crawls with the internal CG module

Optional Accessories – Streamstar dedicated and colour coded
keyboard

Form Factor – 2RU rack

Dimensions without handles – (DxWxH) 457.2 x 430 x 88.1 (mm)

Packing dimensions and weight – (DxWxH) 600 x 580 x 220 (mm)
/ Weight: 15kg

Model: NDX 400


NOTE: monitors and keyboard not included


Die Ware ist original verpackt und wird mit Rechnung und ausgewiesener Mehrwertsteuer versendet. Hardware ist von Umtausch und Rückgaberecht ausgeschlossen. Verkauf nur an gewerbliche Kunden.


Zusätzliche Information

Marke

Streamstar

Produktart

Production Studio

ConditionNew
×
