JVC DT-X53F 5.5 inch Portable LCD Monitor
Introducing the new DT-X53F LCD monitor from JVC. As an extension of our monitor portfolio, we can now offer the DT-X series of monitors with new small panel sizes, ideal for use on-camera, or as control monitors in a system rack. The DT-X53F offers full HD resolution, and is very robust and has a wide range of accessories. The monitor supports 3G HD-SDI and input signals up to 2048×1080 50/60P. The new models in the series are DT-X53 / X73 / X92, all monitors are equipped with waveform, vectorscope and histogram measurement tools, with a dual 9” rack-mounted model ideal for image control in playout or OB van applications.
Emitter (RF-Typ) für PK-AG3 Active Shutter 3D Brillen. Kompatibel mit JVC´s 3D-fähigen DILA Projektoren.
Key Features
- Kompaktes Design
- RF-Signal
- Schnelle Einrichtung/ Aktvierung
– See more at: http://jvcpro.de/product/213/pk-em2g-rf-3d-emitter/#sthash.mEGTmUZn.dpuf
Panel Specifications
- Panel size (diagonal in inch)
- 5.5
- Panel resolution
- 1920 X 1080 Pixels
- Panel Aspect Ratio
- 16 to 9
- Panel Type LCD
- Yes
- Back-light LED
- Yes
- Brightness in cd/m²
- 400
- Panel Bit depth:
- 8
- Image Processing Bit depth
- 8
- Viewing angle H/V
- H 160 / V 160
- Contrast Ratio
- 1000:1
IN-OUT´s Connections VIDEO
- Input HDSDI
- Yes, 3G
- Number of HDSDI Inputs
- 1
- Input HDMI
- Yes
- Number of HDMI Inputs
- 1
- Loop out HDSDI
- Yes, 3G
IN-OUT connections AUDIO
- Headphone out
- Yes
- Speaker integrated
- Yes, 1
IN-OUT Connections Controls
- USB Port
- Yes, for Service and Updates
Supported Signal Formats
- Note for SMPTE/ITU Definitions
- SMPTE or ITU definitions have servile specification in-between, like SMPTE 274 for Interlace Frames rates for example, this is not reflecting here! Please ask for details Signal Spec´s and Frame-rate supports
- HDSDI/SD Signal Formats 2K
- Yes, SMPTE ST 2048-1: 2011 up to 60/50p
- HDSDI/SD Signal Formats SMPTE-425M-A/B
- Yes
- HDSDI/SD Signal Formats SMPTE-274M
- Yes
- HDSDI/SD Signal Formats SMPTE-RP211
- Yes
- HDSDI/SD Signal Formats SMPTE-296M
- Yes
- HDSDI/SD Signal Formats ITU-R BT656
- Yes
- HDSDI/SD Signal Formats SMPTE-125M
- Yes
- HDMI Format 1080P plus
- up to 1080P
Dedicate Functions
- SDI Timecode
- Yes, LTC, VITC1&2

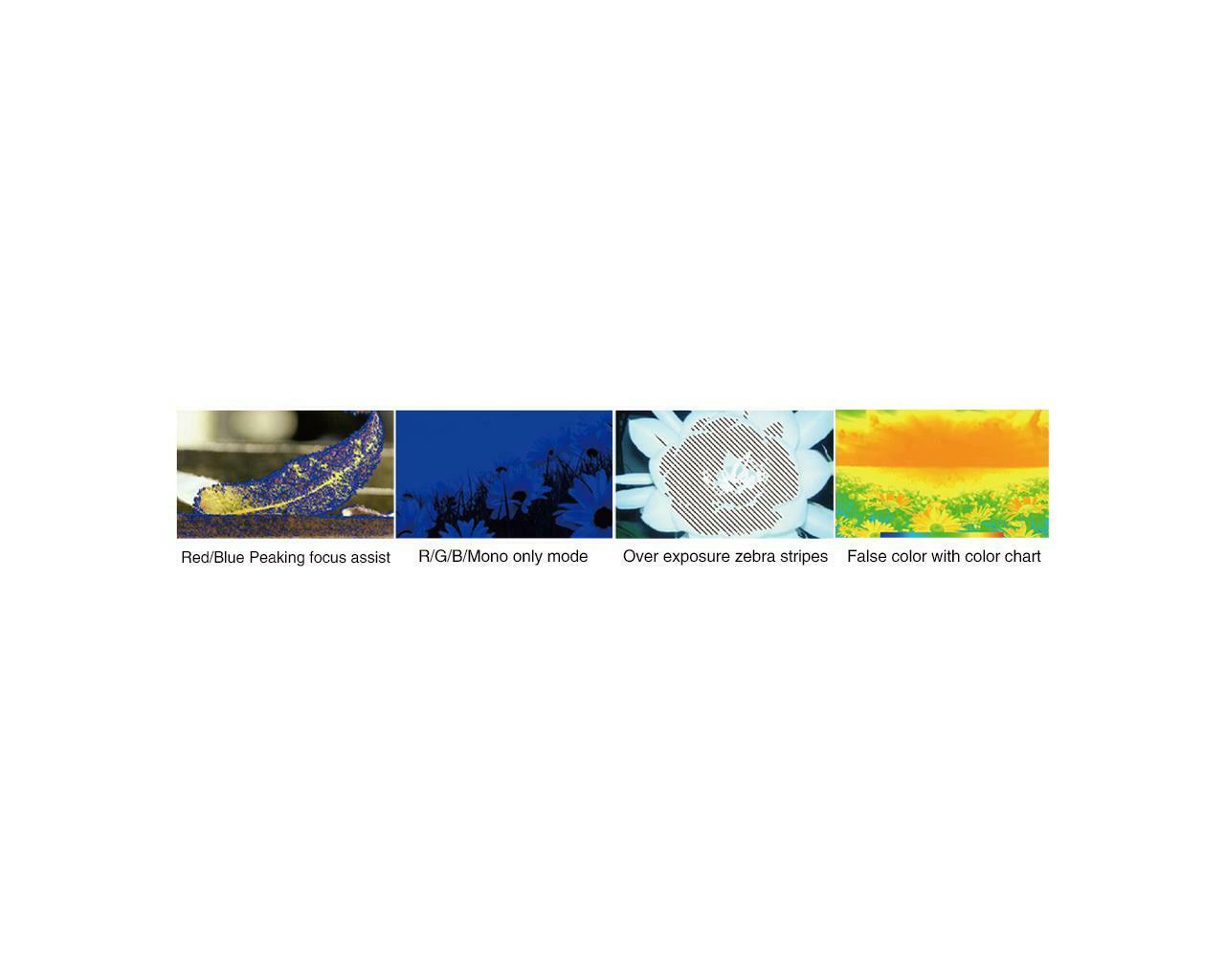

- R/G/B/Mono
- Yes
- False color
- Yes
- Zebra stripes display
- Yes
- Peaking focus assist
- Yes
- H/V delay
- Yes
- Scan Modes
- Normal/Over scan/Native
- Freeze frame
- Yes
- Safety area markers
- Yes, 80%, /85%, 90%, 93%, 95%
- Center Marker
- Yes
- Scale Markers
- Yes, 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1
- User presets
- Yes
- Function Keys
- 3
- Picture Flip modes
- Yes
- OPERATION KEY-LOCK
- Yes
Dedicate Features
- Auto source search
- Yes
Measurement and indication Tools
- Waveform
- Yes
- Waveform enlargement
- Yes
- Waveform Line selector
- Yes
- Waveform subs
- Y/Cb,Cr,R,G,B / view color selection, transculent
- Vector-scope
- Yes
- Vector-scope enlargement
- Yes
- Vector-scope subs
- RGB/Y, futher White, green and false colour, translucent
- Histogram
- Yes
- Histogram subs
- RGB/Y 100%-107% Over-exposure alert
- Audio Level Meter
- Yes
- Audio Level Meter Channels
- 16
- Audio Level Meter subs
- Audio abnormal alert info display
Display only 2-ch, 8-ch, or full 16-ch
Chart position / Translucent adjust
Calibration and Color settings
- Preset Color Temperature 9300K
- Yes
- Preset Color Temperature 6500K
- Yes
- Preset Color Temperature 5600K
- Yes
- Preset Color Temperature USER:
- Yes
- Manual calibration of Color Temperature (gain or/and cut-off)
- Yes
- Gamma Levels
- 2.2/2.4/2.6
- Adjustable Back-Light
- Yes
Power and Enviroment Spec´s
- Power DC
- Yes, 6.5V – 36V
- DC Connector Type:
- round DC plug
- Power consumption
- DC 7.5 Watts
- Operation Temperature in Celsius
- -10C to 50C
- Operation Humidity:(Non-Condensing)
- 10% to 90%
- Storage Temperature in Celsius
- -15C to 60C
- Storage Humidity (Non-Condensing)
- 10% to 90%
Mechanical Informations
- Dimensions W x H x D in mm
- W:151mm / H:91mm / D:31.9mm
- Weight in Kg:
- 0.365Kg
Include Package
- Other Cord: A
- Yes, D-TAB DC cable
- Other Cord: B
- Yes, 5.5 mm Pole DC Cable
- Battery Plate:
- Yes, for SSL-JVC50/75 Batteries
- Sun Hood
- Yes
- Monitor Mount
- Yes, Arm trestle
- Others
- BNC HD Cable, Ask for Professional Package with include additionals: ABS Carrying case, AC-DC Adapter, HDMI Cable
- Instruction Doc:
- Yes
General Editing Note
- General Note
- Simulated pictures.The values for weight and dimensions are approximate .E.&O.E. Design and specifications subject to change without notice.
Basic package includes:
- 5.5’’ Full HD Camera-top LCD Monitor
- 1x Foldable sun hood
- 1x SSL-JVC battery plate
- 1x D-tap to lockable pole-tap DC cable
- 1x Pole-tap to lockable pole-tap DC cable
- 1x Cold shoe & Screw mounting arm trestle
- 1x 50cm BNC video cable
