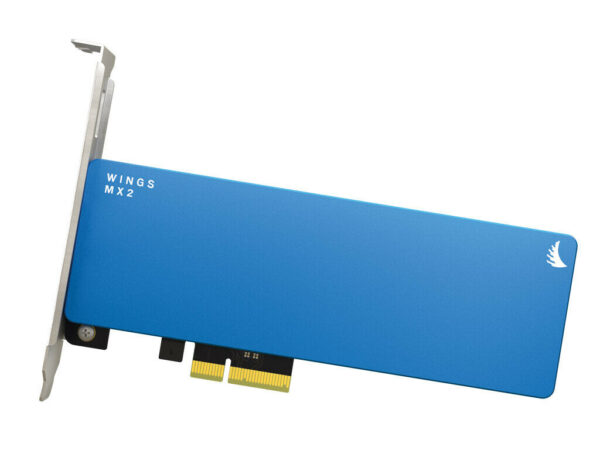

Angelbird Wings MX2 2TB
FEATURES
• Driverless operation
• BIOS, EFI, UEFI bootable
• Full signal integrity – with length- and phase-matched data traces
• EMI and HF shielding
• Mac / Windows / Linux
• TRIM support
• White LED backlight
• Power stabilization
• Maximum Copper TM – for optimal thermal dissipation
• CNC-worked aluminium heatsink
• Rock-solid build
SPECIFICATIONS
GENERAL SPECIFICATIONS
• Type: PCIe Gen2 x2 PCIe SSD
• Capacity: 512 GB, 1 TB, 2 TB
• Connectivity:
– PCIe Gen2 x2; backwards compatible with PCIe Gen1 x2;
– full-height, half-length PCB
• Dimensions: 179 x 120 mm | 7.05 x 4.72 in
• Weight: ~150.0 g / ~5.28 oz
TECHNICAL SPECIFICATIONS
• General Features: Background LEDs, AHCI 1.3.1, SATA 3.2, NCQ, TRIM 1, security erase
• Flash: Grade A MLC NAND
• Over provisioning: ~ 7 %
PERFORMANCE SPECIFICATIONS
• Sustained Read Speed 2, 4: Up to 890 MB/s
• Sustained Write Speed 2, 4: Up to 800 MB/s
ENVIRONMENTAL SPECIFICATIONS
• Operating Temperature: 0 °C ~ +70 °C
• Storage Temperature: –40 °C ~ +85 °C
• Operating Humidity: 5 % to 95 % non-condensing
RELIABILITY SPECIFICATIONS
• MTBF: > 2,000,000 hours
• Certifications: RoHS, CE, and FCC compliant
WARRANTY3
3-year limited warranty
PACKAGE CONTENT
• WINGS MX2 PCIe card
• Activation code for the full limited warranty and additional free software licenses and content
1 Hardware supports the TRIM command.
Operating system support required.
2 Measured with ATTO Benchmark tool 3.05.
3 To receive the full limited warranty, the product needs to be registered on the Angelbird Personal Service Portal within 30 days after purchase. If not registered within this period, the market-specific legal guarantee period comes into force.
4 Measured with the 512GB model.
• Driverless operation
• BIOS, EFI, UEFI bootable
• Full signal integrity – with length- and phase-matched data traces
• EMI and HF shielding
• Mac / Windows / Linux
• TRIM support
• White LED backlight
• Power stabilization
• Maximum Copper TM – for optimal thermal dissipation
• CNC-worked aluminium heatsink
• Rock-solid build
SPECIFICATIONS
GENERAL SPECIFICATIONS
• Type: PCIe Gen2 x2 PCIe SSD
• Capacity: 512 GB, 1 TB, 2 TB
• Connectivity:
– PCIe Gen2 x2; backwards compatible with PCIe Gen1 x2;
– full-height, half-length PCB
• Dimensions: 179 x 120 mm | 7.05 x 4.72 in
• Weight: ~150.0 g / ~5.28 oz
TECHNICAL SPECIFICATIONS
• General Features: Background LEDs, AHCI 1.3.1, SATA 3.2, NCQ, TRIM 1, security erase
• Flash: Grade A MLC NAND
• Over provisioning: ~ 7 %
PERFORMANCE SPECIFICATIONS
• Sustained Read Speed 2, 4: Up to 890 MB/s
• Sustained Write Speed 2, 4: Up to 800 MB/s
ENVIRONMENTAL SPECIFICATIONS
• Operating Temperature: 0 °C ~ +70 °C
• Storage Temperature: –40 °C ~ +85 °C
• Operating Humidity: 5 % to 95 % non-condensing
RELIABILITY SPECIFICATIONS
• MTBF: > 2,000,000 hours
• Certifications: RoHS, CE, and FCC compliant
WARRANTY3
3-year limited warranty
PACKAGE CONTENT
• WINGS MX2 PCIe card
• Activation code for the full limited warranty and additional free software licenses and content
1 Hardware supports the TRIM command.
Operating system support required.
2 Measured with ATTO Benchmark tool 3.05.
3 To receive the full limited warranty, the product needs to be registered on the Angelbird Personal Service Portal within 30 days after purchase. If not registered within this period, the market-specific legal guarantee period comes into force.
4 Measured with the 512GB model.
